E-CAN 12.3-inch 2K Android Head Unit for Nissan Patrol Y62 2010–2019
E-CAN 12.3-inch 2K Android Head Unit for Nissan Patrol Y62 2010–2019
Скидка 95 долларов США на соответствующие требованиям товары в каждом заказе. Скидка рассчитывается при оформлении заказа. Не суммируется с другими скидками.

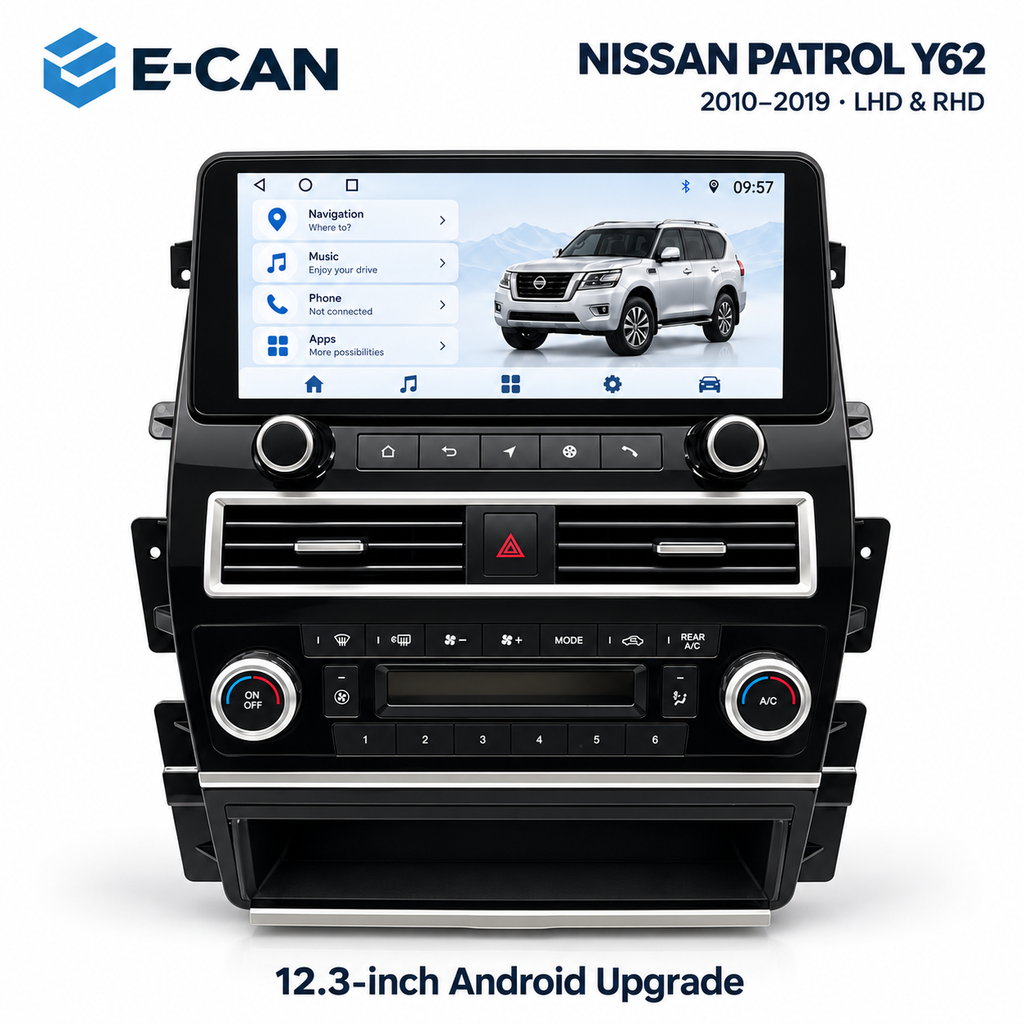

Upgrade your Nissan Patrol Y62 with a 12.3-inch, 2400 × 900 Android 14 display. Choose your hardware configuration and the version for your factory audio system.
Built for Patrol Y62 2010–2019
Suitable for both left-hand-drive and right-hand-drive vehicles with the matching dashboard layout. Compare your original centre console, factory audio, camera equipment and connectors with the installation references. Send E-CAN a dashboard photo before ordering if you need help confirming the installation.
Factory Bose audio: select Factory Bose + CANbus harness. The additional charge includes the matching CANbus decoder and wiring harness required for the original Bose system. Select Standard / Non-Bose only when your vehicle does not have factory Bose audio.
Choose your configuration
All five configurations use a 12.3-inch 2400 × 900 display and Android 14. SP10 in this product is supplied with 12GB RAM and 512GB storage.
| Configuration | Platform | Network | EQ / USB | Camera support |
|---|---|---|---|---|

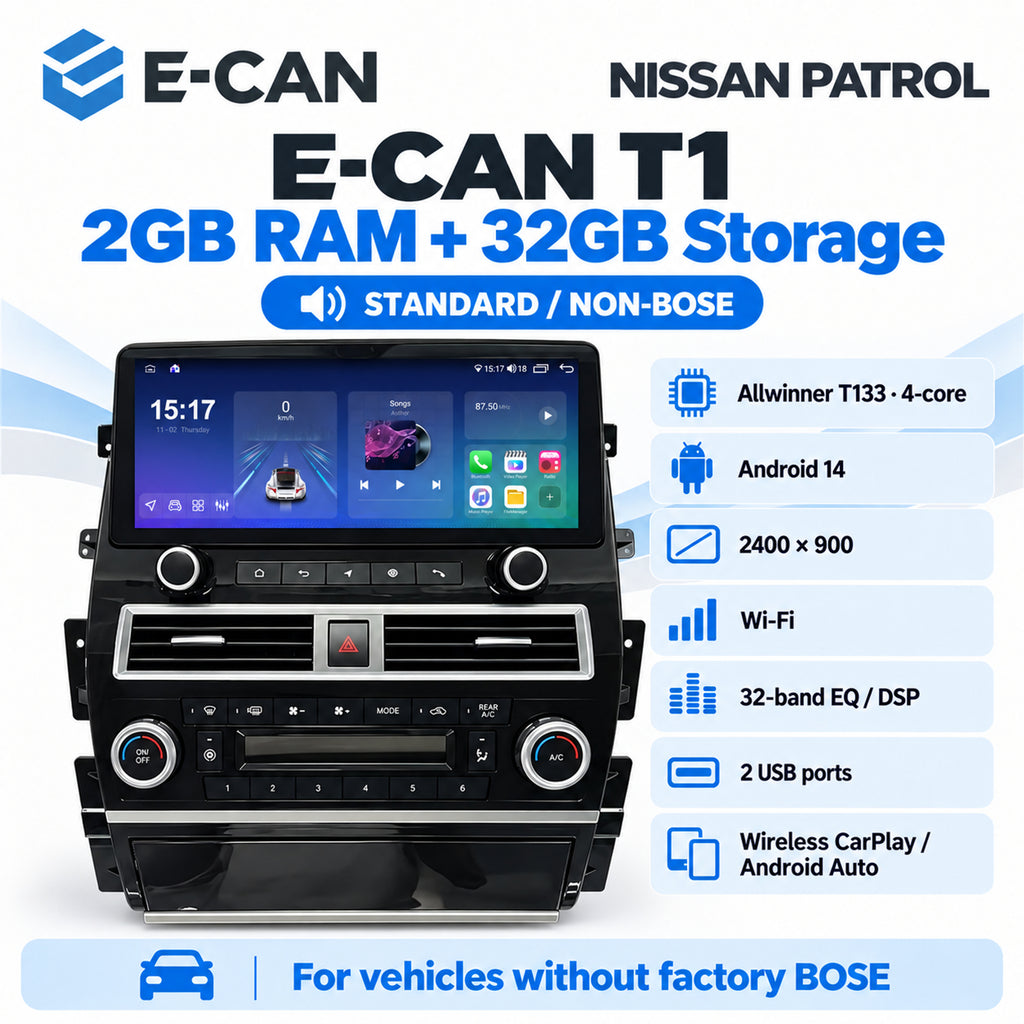

| T1 · 2GB + 32GB | Allwinner T133 · 4-core | Wi-Fi | 32-band / 2 USB | Rear camera; no 360° |

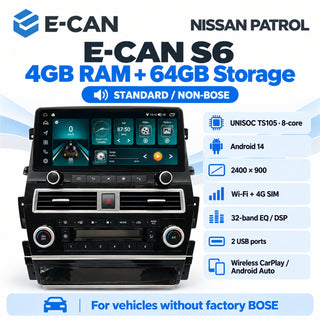

| S6 · 4GB + 64GB | UNISOC TS105 / UIS7865 · 8-core | Wi-Fi + 4G SIM | 32-band / 2 USB | Rear camera; optional 360° |
| CK · 6GB + 64GB | Qualcomm 6115 · 8-core | Wi-Fi 5 + 4G LTE | 48-band / 3 USB | Rear camera; optional 360° |
| CK · 8GB + 128GB | Qualcomm 6115 · 8-core | Wi-Fi 5 + 4G LTE | 48-band / 3 USB | Rear camera; optional 360° |

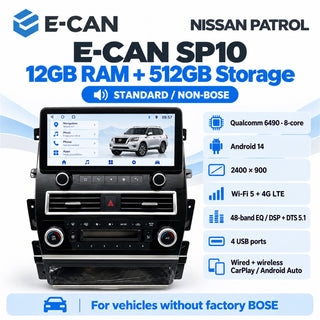

| SP10 · 12GB + 512GB | Qualcomm 6490 · 8-core | Wi-Fi 5 + 4G LTE | 48-band, DTS 5.1 / 4 USB | Rear camera; optional 360° |
Factory audio and Bose integration
Choose the audio version using the option cards beside the product price. The Bose decoder and harness are included once in the Bose variant price; no separate duplicate CANbus charge is required. The selected audio version applies to each head unit in your quantity. Confirm the original amplifier and connectors with E-CAN before installation.
Phone connection, navigation and apps
Wireless Apple CarPlay and Android Auto are available across the range; CK and SP10 also support wired connection. T1 uses Wi-Fi, while S6, CK and SP10 support a compatible SIM and mobile data service. Phones, SIM cards and data plans are sold separately. App availability and voice features depend on the installed software and network connection.
Audio hardware
| Component | T1 | S6 | CK 6 / CK 8 | SP10 |
|---|---|---|---|---|
| Audio DSP | Integrated | AKM AK7604 | AKM AK7604 | AKM AK7739 |
| Power amplifier | TDA7388 | TDA7851 | TDA7851 | TDA7808 |
| Operational amplifier | Not specified | Integrated; IC not specified | JRC4558 | JRC4558 |
| Separate DAC | Not specified | Not specified | Not specified | MS4344 |
| Radio tuner IC | 8035 | 4755 | TDA7708 | NXP6686 |
| Optical audio output | No | No | Yes | Yes |
Camera and installation options
Rear cameras, 360° hardware, adapters and installation are optional and are not included in the standard head-unit price. T1 does not support a 360° camera system. S6, CK and SP10 require compatible hardware, fitting and calibration for 360° operation. Confirm retention of any factory camera and amplifier before ordering.

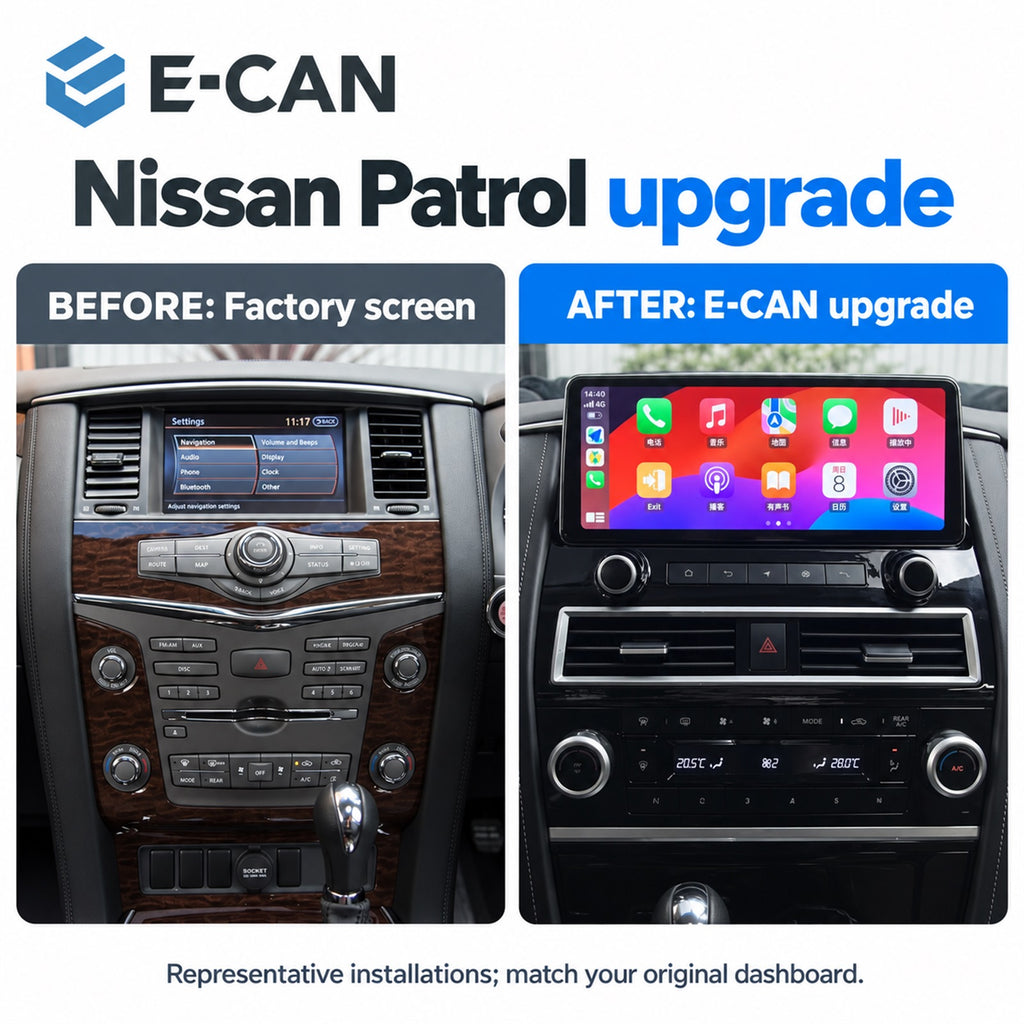

Product and installation images are supplied references. Interface appearance may vary by software. Fitment depends on the original dashboard and equipment. Standard shipping follows the store’s available delivery zones; import duties and VAT are excluded. Contact E-CAN for fitment assistance.
