Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.

E-CAN 9-inch QLED Android Head Unit for Nissan Sunny N16 2004–2010 RHD

RHD · 9-inch fascia (+US$40) / T1 · 2GB + 32GB
$348.99 USD
Ir directamente a la información del producto
Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 01 product white. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 02 2k display. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 03 installation comparison. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 10 sp package and wiring. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 01 product white. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 02 2k display. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 03 installation comparison. Standard QLED1280x720; 2K screens optional.
  • Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 10 sp package and wiring. Standard QLED1280x720; 2K screens optional.
E-CAN 9-inch QLED Android Head Unit for Nissan Sunny N16 2004–2010 RHD

E-CAN 9-inch QLED Android Head Unit for Nissan Sunny N16 2004–2010 RHD

$348.99 USD
US$95 OFF
Cupón Aplicar cupón

95 USD de descuento en productos elegibles por pedido. El descuento se calcula al finalizar la compra. No acumulable con otros descuentos.

Vehicle versionRHD · 9-inch fascia (+US$40)
Configuration

Completa tu equipo

Elige extras opcionales. Se añaden al carrito junto con tu equipo.

Mejoras de pantalla

QLED 1280 × 720 viene de serie. Elige una mejora 2K solo si la necesitas.

Pantalla negra 2K laminada Mejora opcional a pantalla 2K laminada. +$55.00 USD
Pantalla azul 2K Mejora opcional a pantalla azul 2K. +$85.00 USD
Combina bien con
Grabadora USB Grabadora USB para el coche. +$40.00 USD
Receptor USB DAB+ Receptor de radio digital USB con antena de parabrisas. +$65.00 USD

Accesorios seleccionados$0.00 USD

Los precios de los accesorios incluyen el envío. La instalación no está incluida.

Upgrade your Nissan Sunny N16

Choose the illustrated dashboard version, then select T1, S6, CK or SP10. The standard display is QLED 1280 × 720. Screen size and fascia shape follow the selected vehicle version.

Match your dashboard

Version Vehicle / years Screen
RHD · 9-inch fascia (+US$40) Nissan Sunny N16 2004–2010 9 inches

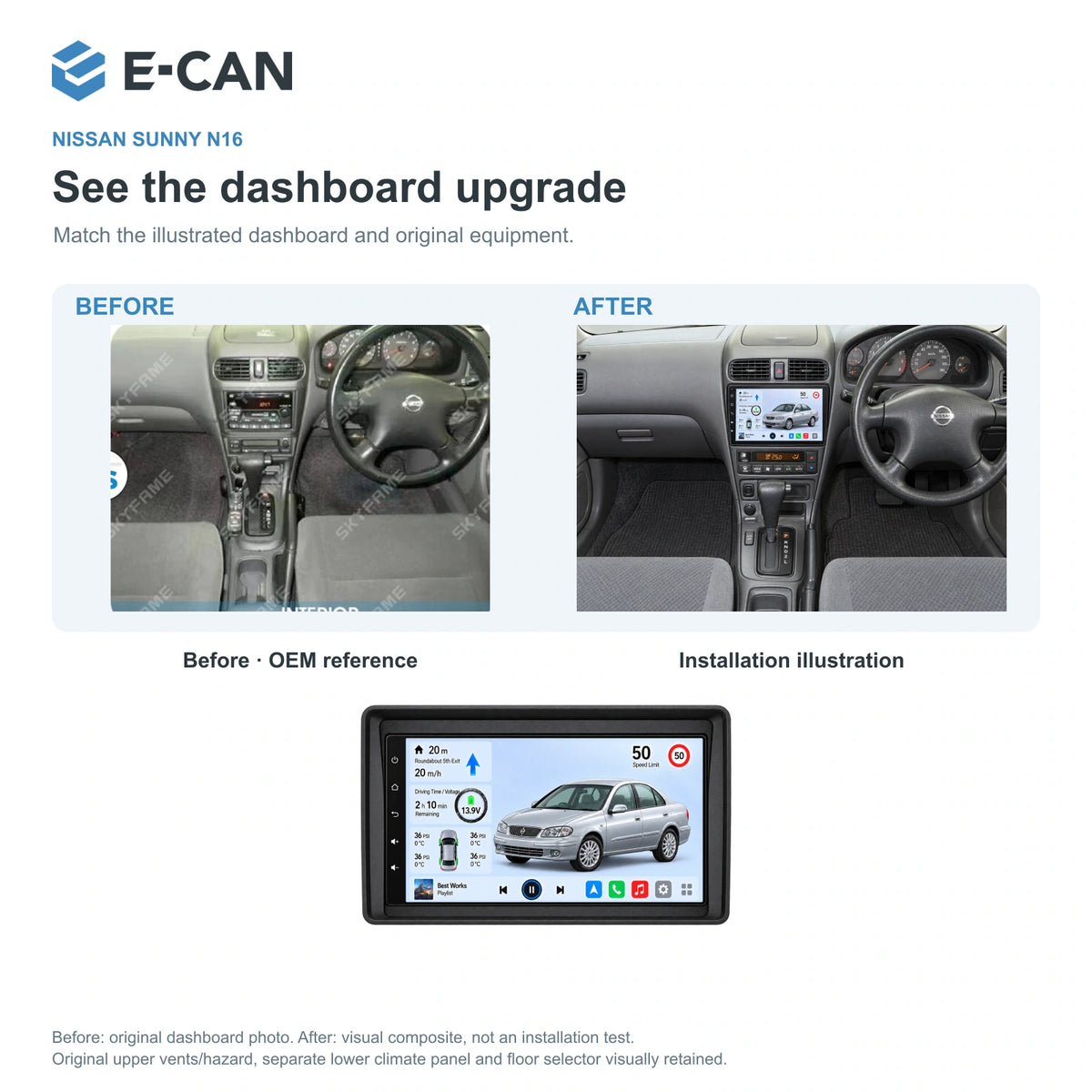

RHD · 9-inch fascia (+US$40) — fitment and dashboard images

For the illustrated Sunny N16 2004–2010 RHD radio opening. Retain original upper vents and vertical hazard switch, lower automatic climate panel and floor selector. Original dashboard and N16 sedan reference are genuine photographs within the frame supplier's product composite; the Before panel crops its interior photograph without changing its contents. Check the actual radio opening, plugs and factory audio equipment; do not extend this fitment to different N17 dashboards. Installation artwork is an illustration, not a physical fit test.

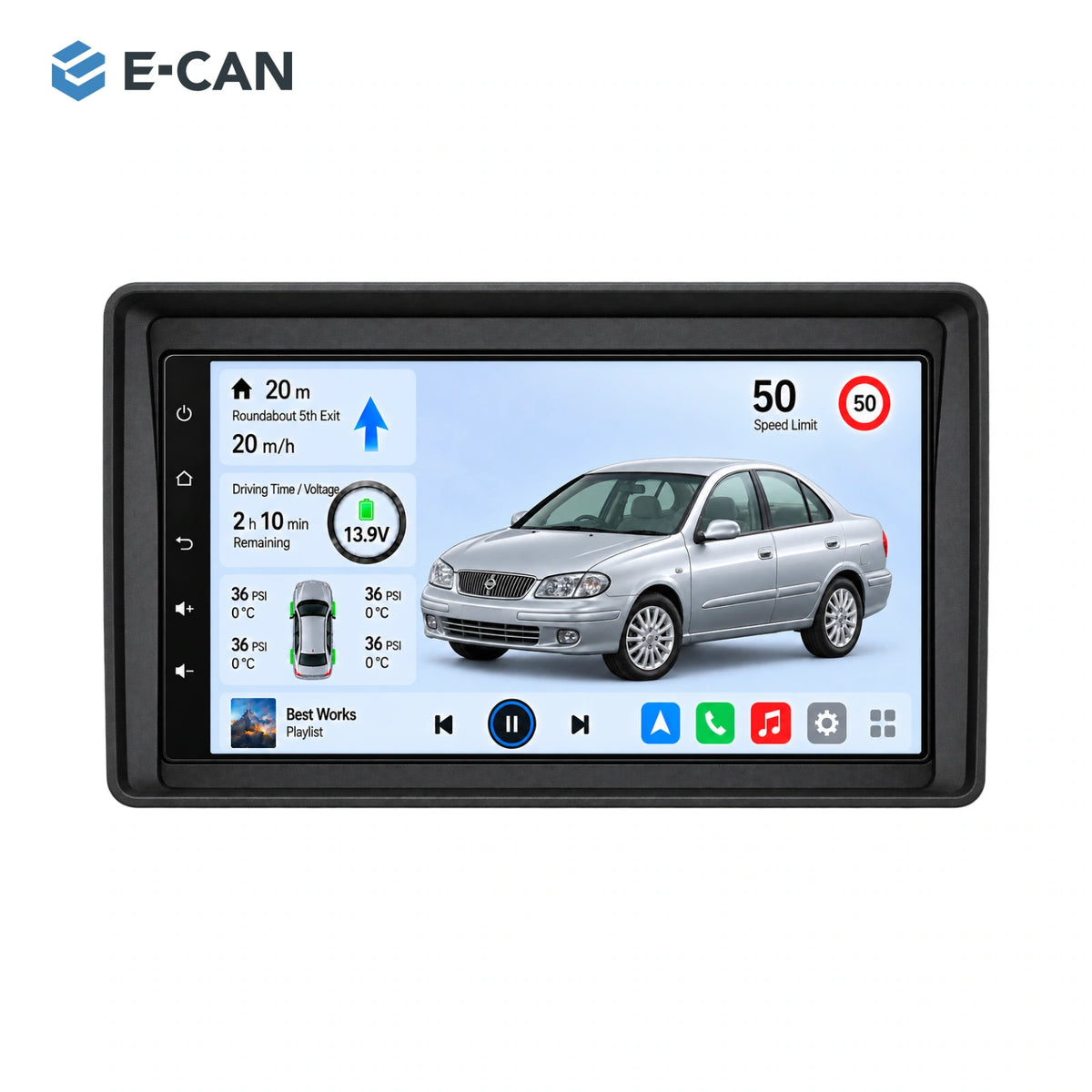

Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 01 product white. Standard QLED1280x720; 2K screens optional.
Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 03 installation comparison. Standard QLED1280x720; 2K screens optional.

Prices for the listed right-hand-drive versions include the US$40 RHD surcharge.

Choose your configuration

All five configurations use Android 14 with wireless CarPlay, Android Auto and Bluetooth. Hardware and audio features vary by configuration; the SP10 features below apply to SP10 only.

E-CAN Nissan 9/10-inch head unit comparison: T1 2GB 32GB, S6 4GB 64GB, CK 6GB 64GB, CK 8GB 128GB and SP10 12GB 256GB; standard QLED 1280 by 720 display; two paid optional 2K screen upgrades.
Configuration Processor / GPU Memory Audio DSP / amplifier / radio
T1 Allwinner T133
GE8300 · 504MHz		 2GB + 32GB Integrated DSP / TDA7388 / NXP8035
S6 UNISOC UIS7865
Mali-G57 MC2		 4GB + 64GB AKM7604 / TDA7851 / NXP4755
CK Qualcomm 6115
Adreno 610		 6GB + 64GB AKM7604 / TDA7851 / SI4755
CK Qualcomm 6115
Adreno 610		 8GB + 128GB AKM7604 / TDA7851 / SI4755
SP10 Qualcomm 6490
Adreno 643		 12GB + 256GB AKM AK7739 / TDA7808 / TDA7708

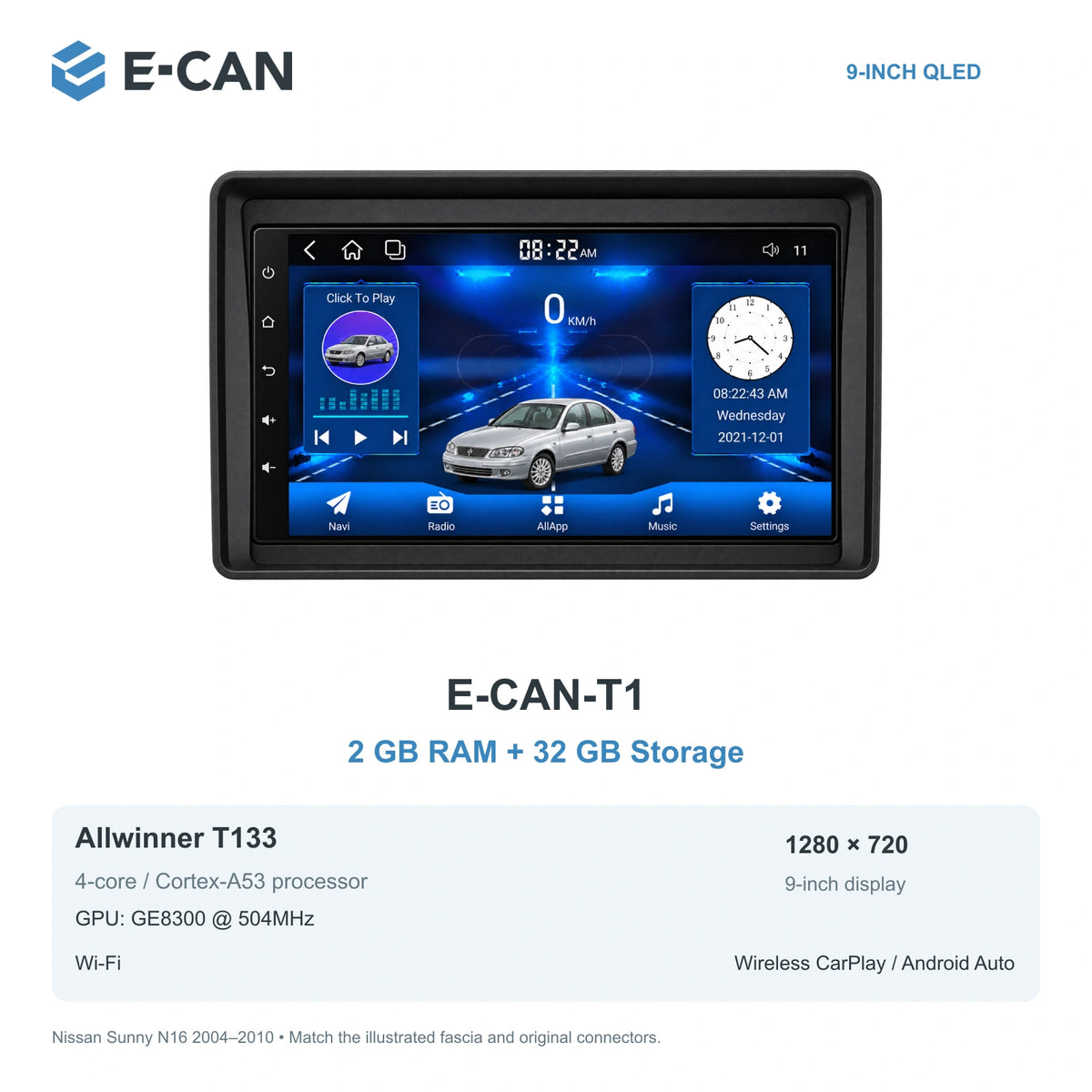

T1 · 2GB + 32GB — full specifications

Allwinner T133 · Quad-core · GE8300 · 504MHz
Android 14 · Wi-Fi · Wi-Fi only · 2 USB ports
Integrated DSP · 32-band EQ · TDA7388 amplifier · NXP8035 radio
Audio output: 4 RCA

E-CAN T1 2GB RAM 32GB storage Nissan 9/10-inch head unit specifications, Allwinner T133, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
S6 · 4GB + 64GB — full specifications

UNISOC UIS7865 · Octa-core · Mali-G57 MC2
Android 14 · Wi-Fi · 4G LTE (SIM) · 2 USB ports
AKM7604 · 32-band EQ · TDA7851 amplifier · NXP4755 radio
Audio output: 4 RCA

E-CAN S6 4GB RAM 64GB storage Nissan 9/10-inch head unit specifications, UNISOC UIS7865, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
CK · 6GB + 64GB — full specifications

Qualcomm 6115 · Octa-core · Adreno 610
Android 14 · Wi-Fi 5 · 4G LTE (SIM) · 3 USB ports
AKM7604 · 48-band EQ · TDA7851 amplifier · SI4755 radio
Audio output: 5.1-channel RCA

E-CAN CK 6GB RAM 64GB storage Nissan 9/10-inch head unit specifications, Qualcomm 6115, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
CK · 8GB + 128GB — full specifications

Qualcomm 6115 · Octa-core · Adreno 610
Android 14 · Wi-Fi 5 · 4G LTE (SIM) · 3 USB ports
AKM7604 · 48-band EQ · TDA7851 amplifier · SI4755 radio
Audio output: 5.1-channel RCA

E-CAN CK 8GB RAM 128GB storage Nissan 9/10-inch head unit specifications, Qualcomm 6115, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
SP10 · 12GB + 256GB — full specifications

Qualcomm 6490 · Octa-core · Adreno 643
Android 14 · Wi-Fi 5 · 4G LTE (SIM) · 4 USB ports
AKM AK7739 · 48-band + DTS 5.1 EQ · TDA7808 amplifier · TDA7708 radio
Audio output: 8 RCA

E-CAN SP10 12GB RAM 256GB storage Nissan 9/10-inch head unit specifications, Qualcomm 6490, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.

SP10 platform and audio

SP10: Qualcomm 6490, 12GB RAM + 256GB storage, AKM AK7739 DSP, TDA7808 amplifier and TDA7708 radio. HDMI and DTS 5.1 apply to SP10. Optical/coaxial audio is available on CK and SP10 as listed in the configuration table.

Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 06 sp10 platform audio. Standard QLED1280x720; 2K screens optional.

Qualcomm 6490 performance · SP10 only

SP10 Qualcomm 6490: 6nm octa-core Kryo 670, Adreno 643, Hexagon 770 with 12 TOPS, 12GB RAM and 256GB storage.

SP10 mainboard and audio hardware

SP10 Qualcomm 6490 mainboard with AKM AK7739 audio DSP, ST TDA7808 amplifier, ST TDA7708 radio, HDMI 1080P and optical audio outputs.

OTA firmware updates

OTA updates provide compatible E-CAN firmware. They do not upgrade the Android operating-system version.

E-CAN over-the-air firmware updates. Android operating system version upgrades are not supported.

Day / night interfaces and phone connectivity

Interface illustrations show the vehicle-specific screen and matching vehicle model. The illustrated SP10 interface may differ from other configurations.

Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 06b day night ui. Standard QLED1280x720; 2K screens optional.
Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 07 wireless phone link. Standard QLED1280x720; 2K screens optional.

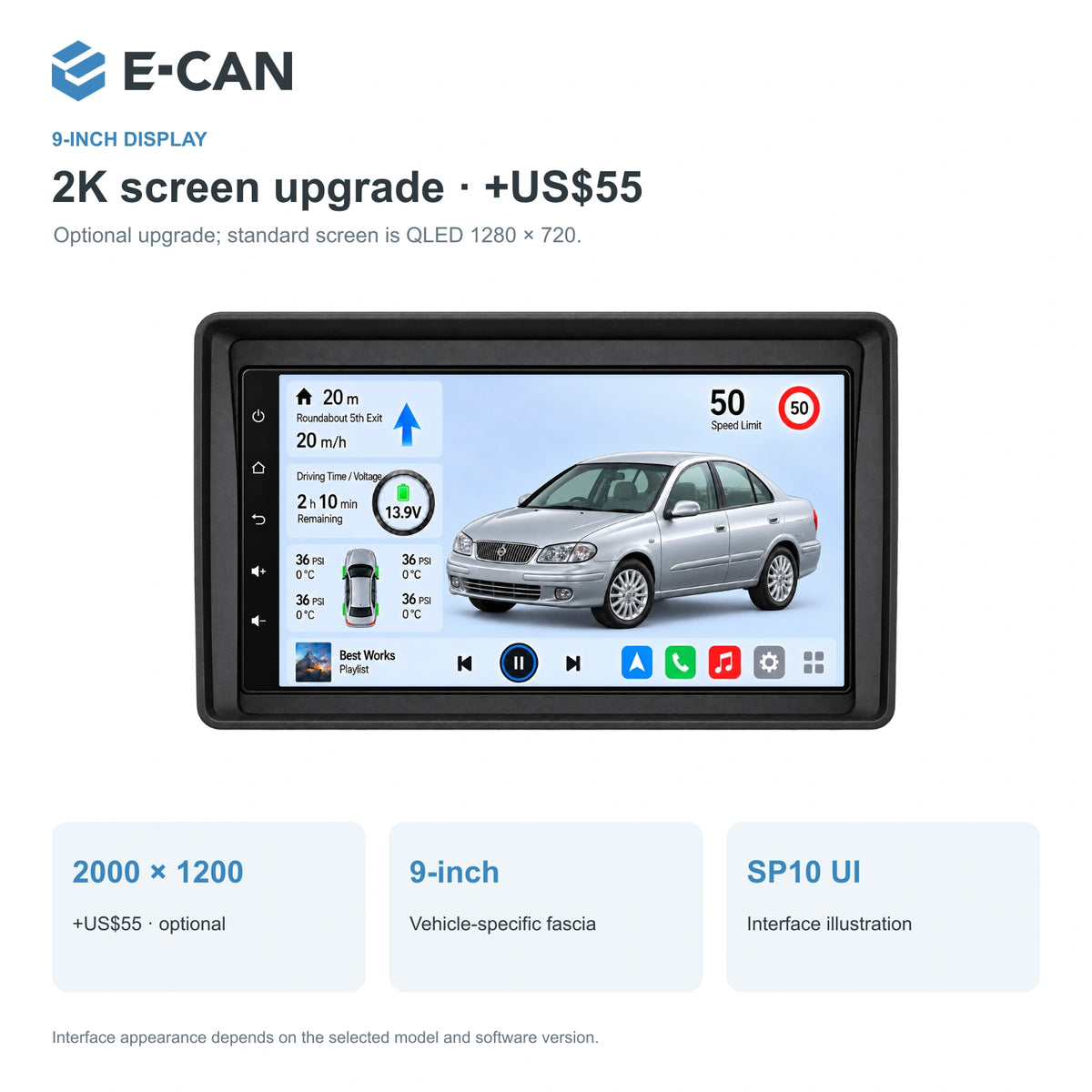

Screen upgrades and optional accessories

Standard: QLED 1280 × 720. Optional 2K 2000 × 1200 screen: +US$55. Optional 2K blue anti-glare screen: +US$85. Choose one screen upgrade; the two upgrade prices are alternatives.

Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 02 2k display. Standard QLED1280x720; 2K screens optional.
Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 08 blue screen option. Standard QLED1280x720; 2K screens optional.

Optional accessories: USB dash camera US$40; USB TPMS US$45; steering-wheel buttons US$40; 360° camera kit US$70; rear-view camera US$35; OBD adapter US$65; ambient lighting US$85; compatible CANbus interface US$25; USB DAB receiver US$65.

The 360° kit is optional for S6, CK and SP10; it is not offered for T1. The CANbus interface option is conditional on the original equipment, vehicle year and trim. Camera and factory-amplifier integration must match the original connectors.

Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 05 360 camera option. Standard QLED1280x720; 2K screens optional.

Fascia, accessories and installation

Match the original dashboard, A/C layout, driving side and plugs before ordering. Wiring drawings are connection illustrations. Factory Bose/amplifier, cameras and retained vehicle functions may require a compatible interface. The main power harness must match the original Nissan connectors.

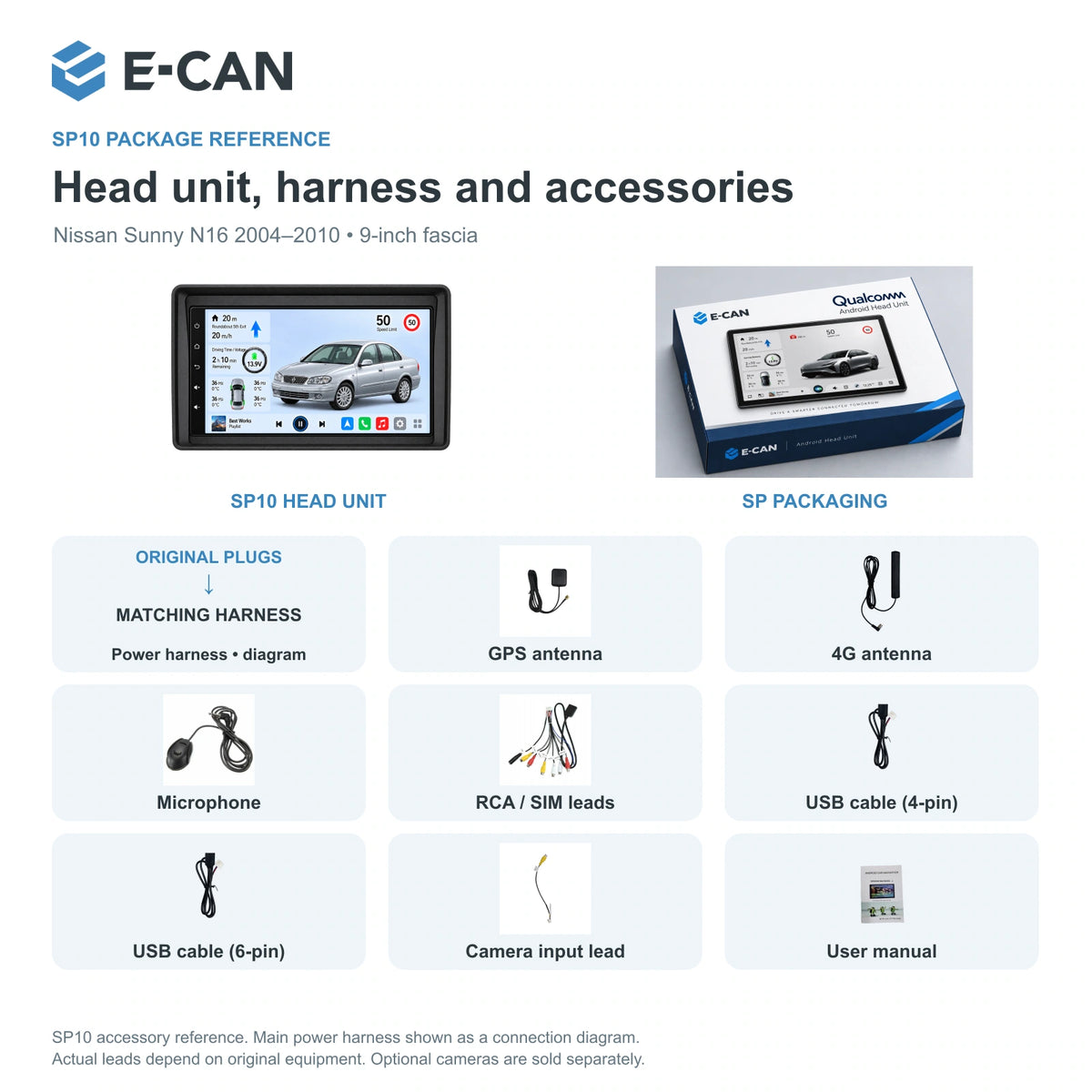

RHD · 9-inch fascia (+US$40) — package and wiring
Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 10 sp package and wiring. Standard QLED1280x720; 2K screens optional.
Nissan Sunny N16 2004–2010, 9-inch RHD fascia: 09 fit and installation. Standard QLED1280x720; 2K screens optional.
