Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.

E-CAN 10.1-inch QLED Android Head Unit for Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006

LHD · 10.1-inch fascia / T1 · 2GB + 32GB
$317.99 USD
Skip to product information
Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 01 product white. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 02 2k display. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 03 installation comparison. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 10 sp package and wiring. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 01 t1 2 32gb. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 01 product white. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 02 2k display. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 03 installation comparison. Standard QLED1280x720; 2K screens optional.
  • Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 10 sp package and wiring. Standard QLED1280x720; 2K screens optional.
E-CAN 10.1-inch QLED Android Head Unit for Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006

E-CAN 10.1-inch QLED Android Head Unit for Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006

$317.99 USD
US$95 OFF
Coupon Apply coupon

US$95 off eligible products per order. Discount calculated at checkout. Cannot be combined with other discounts.

Vehicle versionLHD · 10.1-inch fascia
Configuration

Complete your setup

Choose optional extras. Selected items are added with your head unit.

Screen upgrades

QLED 1280 × 720 is included as standard. Choose a 2K upgrade only if required.

2K laminated black screen Optional fully laminated 2K display upgrade. +$55.00 USD
2K blue screen Optional blue 2K display upgrade. +$85.00 USD
Goes well with
USB dash camera USB dash camera accessory. +$40.00 USD
USB DAB+ receiver USB digital radio receiver with windscreen antenna. +$65.00 USD

Selected accessories$0.00 USD

Accessory prices include shipping. Installation is not included.

Upgrade your Nissan Almera N16 / Sentra B15

Choose the illustrated dashboard version, then select T1, S6, CK or SP10. The standard display is QLED 1280 × 720. Screen size and fascia shape follow the selected vehicle version.

Match your dashboard

Version Vehicle / years Screen
LHD · 10.1-inch fascia Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006 10.1 inches

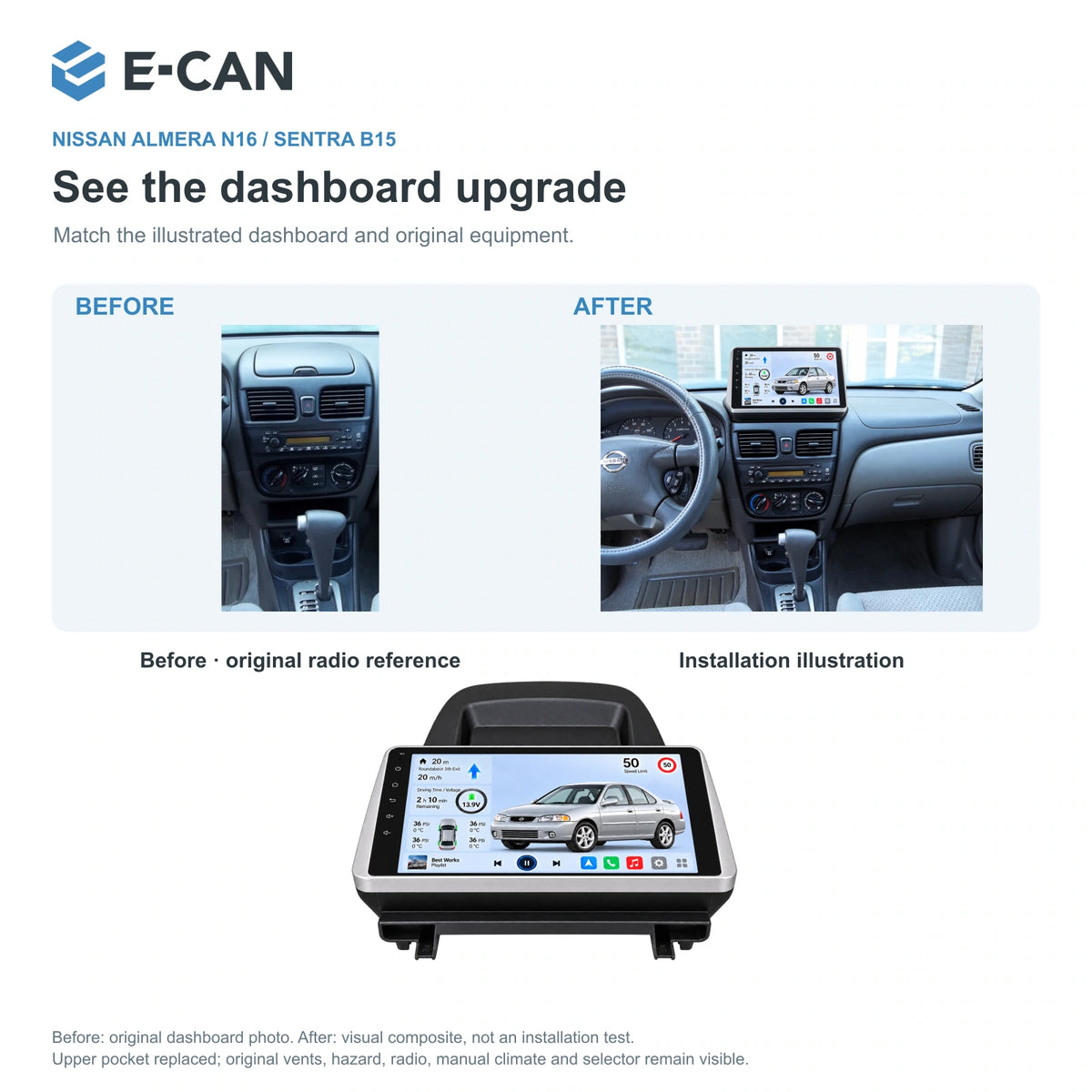

LHD · 10.1-inch fascia — fitment and dashboard images

User specifies NissanAlmera(N16)2000–2003 and Sentra2001–2006, superseding the earlier tentative oldBluebird description and mislabeled localfolder. Actual top-pocket adapter matches CARAV22-1210 and NI078T10.1inch family. Installation replaces only the original upper lidded storage pocket; genuineLHD SentraB15 cabin is the illustrated example. Original twin vents/hazard, lower originalradio/CD, manual temperature/fan/airflow dials, defrost/recirculation/A-C buttons,12V and automatic selector remain visible. Display/UI vehicle is representative official2001SentraB15; AlmeraN16 body/equipment is not substituted as the same car. Match exact dashboard/mounts/plugs and audio integration; retaining a visible original radio does not assert simultaneous electrical operation.

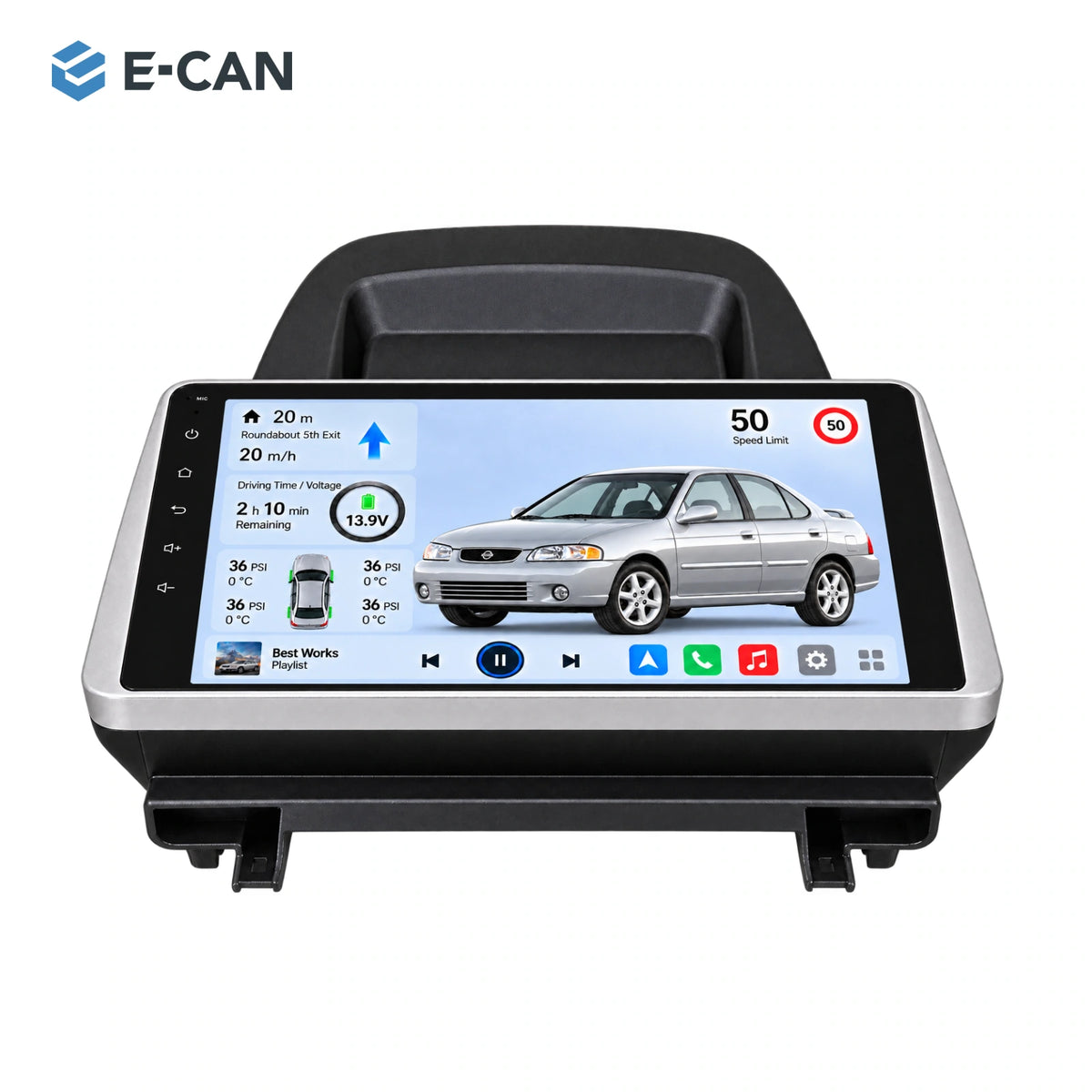

Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 01 product white. Standard QLED1280x720; 2K screens optional.
Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 03 installation comparison. Standard QLED1280x720; 2K screens optional.

Choose your configuration

All five configurations use Android 14 with wireless CarPlay, Android Auto and Bluetooth. Hardware and audio features vary by configuration; the SP10 features below apply to SP10 only.

E-CAN Nissan 9/10-inch head unit comparison: T1 2GB 32GB, S6 4GB 64GB, CK 6GB 64GB, CK 8GB 128GB and SP10 12GB 256GB; standard QLED 1280 by 720 display; two paid optional 2K screen upgrades.
Configuration Processor / GPU Memory Audio DSP / amplifier / radio
T1 Allwinner T133
GE8300 · 504MHz		 2GB + 32GB Integrated DSP / TDA7388 / NXP8035
S6 UNISOC UIS7865
Mali-G57 MC2		 4GB + 64GB AKM7604 / TDA7851 / NXP4755
CK Qualcomm 6115
Adreno 610		 6GB + 64GB AKM7604 / TDA7851 / SI4755
CK Qualcomm 6115
Adreno 610		 8GB + 128GB AKM7604 / TDA7851 / SI4755
SP10 Qualcomm 6490
Adreno 643		 12GB + 256GB AKM AK7739 / TDA7808 / TDA7708

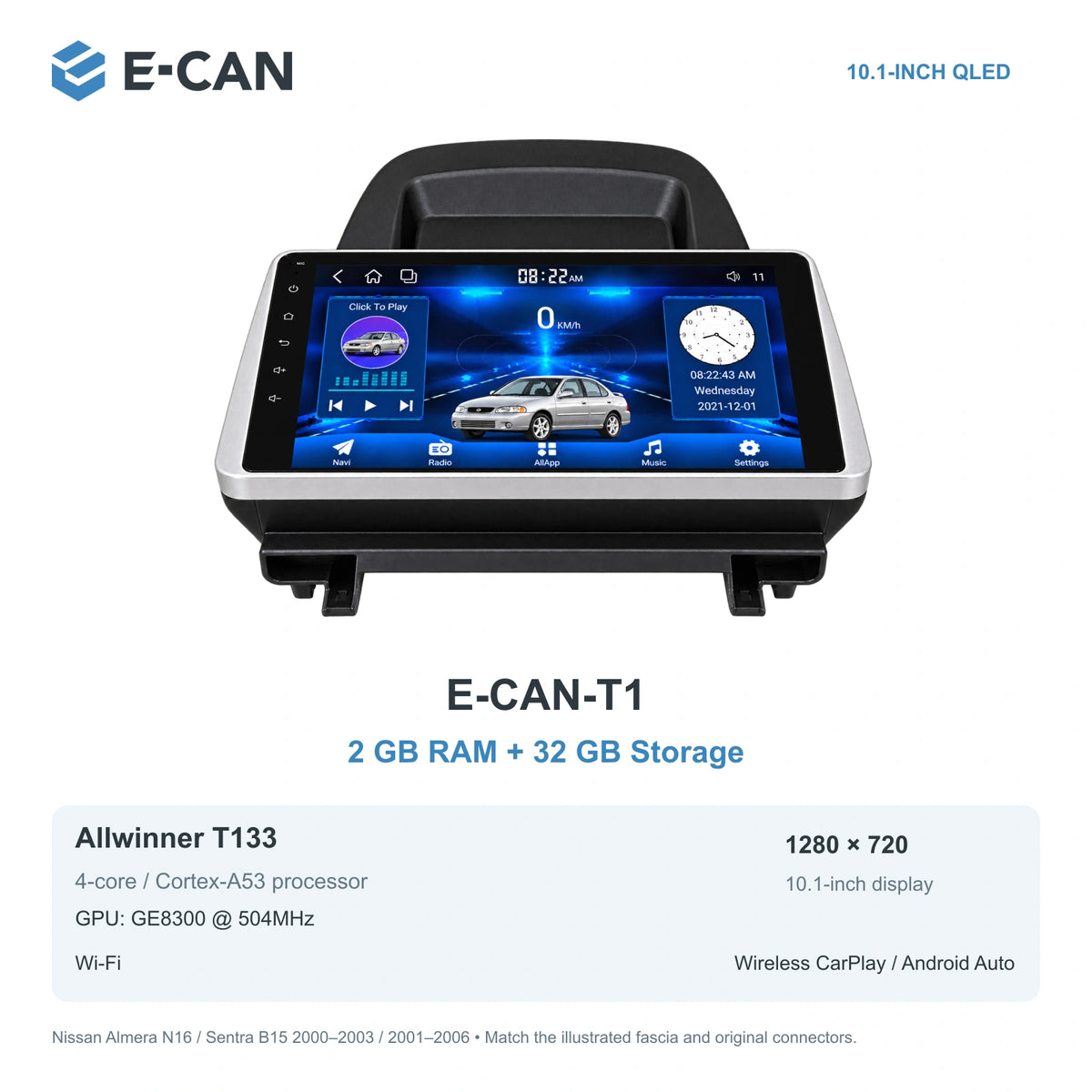

T1 · 2GB + 32GB — full specifications

Allwinner T133 · Quad-core · GE8300 · 504MHz
Android 14 · Wi-Fi · Wi-Fi only · 2 USB ports
Integrated DSP · 32-band EQ · TDA7388 amplifier · NXP8035 radio
Audio output: 4 RCA

E-CAN T1 2GB RAM 32GB storage Nissan 9/10-inch head unit specifications, Allwinner T133, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
S6 · 4GB + 64GB — full specifications

UNISOC UIS7865 · Octa-core · Mali-G57 MC2
Android 14 · Wi-Fi · 4G LTE (SIM) · 2 USB ports
AKM7604 · 32-band EQ · TDA7851 amplifier · NXP4755 radio
Audio output: 4 RCA

E-CAN S6 4GB RAM 64GB storage Nissan 9/10-inch head unit specifications, UNISOC UIS7865, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
CK · 6GB + 64GB — full specifications

Qualcomm 6115 · Octa-core · Adreno 610
Android 14 · Wi-Fi 5 · 4G LTE (SIM) · 3 USB ports
AKM7604 · 48-band EQ · TDA7851 amplifier · SI4755 radio
Audio output: 5.1-channel RCA

E-CAN CK 6GB RAM 64GB storage Nissan 9/10-inch head unit specifications, Qualcomm 6115, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
CK · 8GB + 128GB — full specifications

Qualcomm 6115 · Octa-core · Adreno 610
Android 14 · Wi-Fi 5 · 4G LTE (SIM) · 3 USB ports
AKM7604 · 48-band EQ · TDA7851 amplifier · SI4755 radio
Audio output: 5.1-channel RCA

E-CAN CK 8GB RAM 128GB storage Nissan 9/10-inch head unit specifications, Qualcomm 6115, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.
SP10 · 12GB + 256GB — full specifications

Qualcomm 6490 · Octa-core · Adreno 643
Android 14 · Wi-Fi 5 · 4G LTE (SIM) · 4 USB ports
AKM AK7739 · 48-band + DTS 5.1 EQ · TDA7808 amplifier · TDA7708 radio
Audio output: 8 RCA

E-CAN SP10 12GB RAM 256GB storage Nissan 9/10-inch head unit specifications, Qualcomm 6490, Android 14, standard QLED 1280 by 720 display; 2K screens are paid optional upgrades.

SP10 platform and audio

SP10: Qualcomm 6490, 12GB RAM + 256GB storage, AKM AK7739 DSP, TDA7808 amplifier and TDA7708 radio. HDMI and DTS 5.1 apply to SP10. Optical/coaxial audio is available on CK and SP10 as listed in the configuration table.

Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 06 sp10 platform audio. Standard QLED1280x720; 2K screens optional.

Qualcomm 6490 performance · SP10 only

SP10 Qualcomm 6490: 6nm octa-core Kryo 670, Adreno 643, Hexagon 770 with 12 TOPS, 12GB RAM and 256GB storage.

SP10 mainboard and audio hardware

SP10 Qualcomm 6490 mainboard with AKM AK7739 audio DSP, ST TDA7808 amplifier, ST TDA7708 radio, HDMI 1080P and optical audio outputs.

OTA firmware updates

OTA updates provide compatible E-CAN firmware. They do not upgrade the Android operating-system version.

E-CAN over-the-air firmware updates. Android operating system version upgrades are not supported.

Day / night interfaces and phone connectivity

Interface illustrations show the vehicle-specific screen and matching vehicle model. The illustrated SP10 interface may differ from other configurations.

Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 06b day night ui. Standard QLED1280x720; 2K screens optional.
Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 07 wireless phone link. Standard QLED1280x720; 2K screens optional.

Screen upgrades and optional accessories

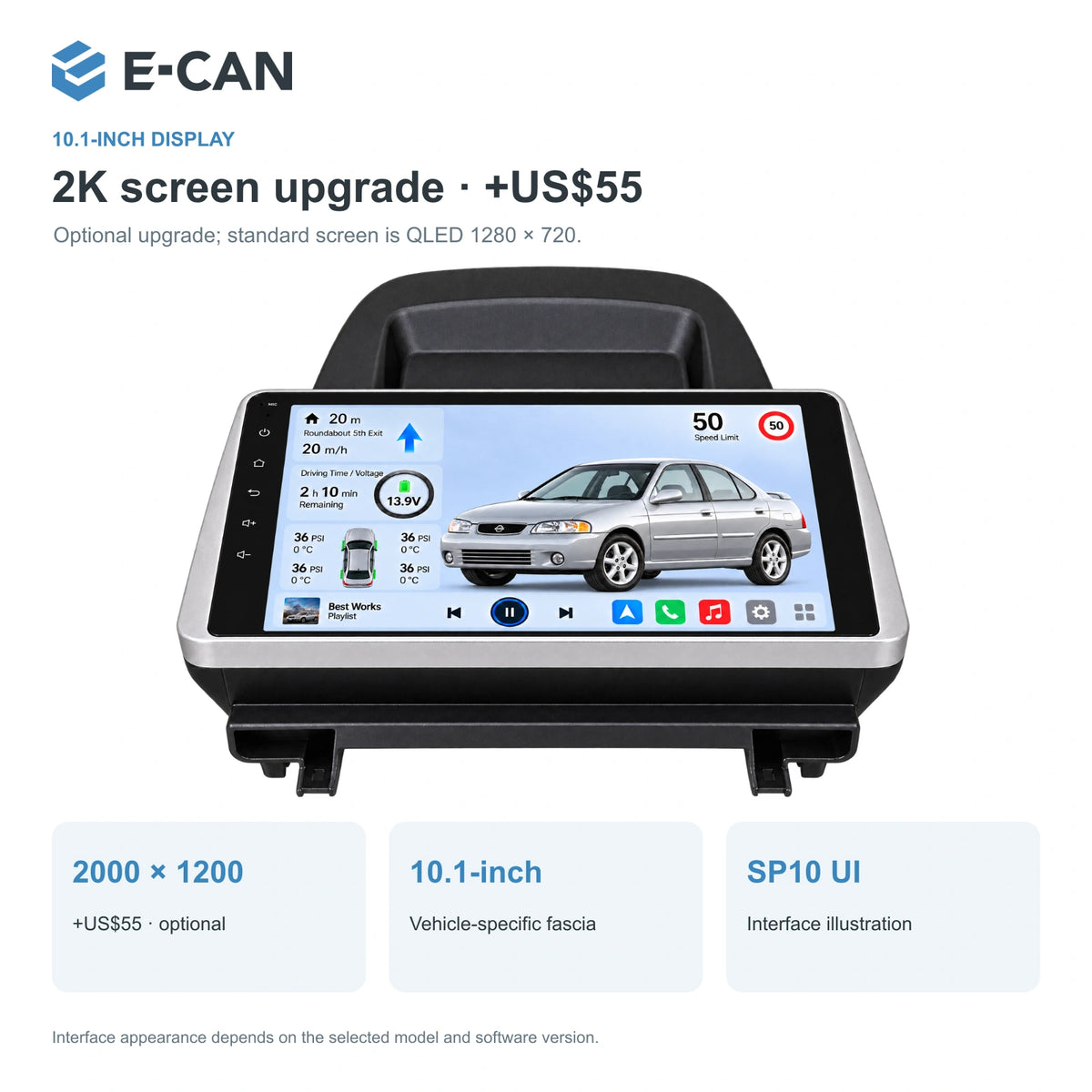

Standard: QLED 1280 × 720. Optional 2K 2000 × 1200 screen: +US$55. Optional 2K blue anti-glare screen: +US$85. Choose one screen upgrade; the two upgrade prices are alternatives.

Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 02 2k display. Standard QLED1280x720; 2K screens optional.
Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 08 blue screen option. Standard QLED1280x720; 2K screens optional.

Optional accessories: USB dash camera US$40; USB TPMS US$45; steering-wheel buttons US$40; 360° camera kit US$70; rear-view camera US$35; OBD adapter US$65; ambient lighting US$85; compatible CANbus interface US$25; USB DAB receiver US$65.

The 360° kit is optional for S6, CK and SP10; it is not offered for T1. The CANbus interface option is conditional on the original equipment, vehicle year and trim. Camera and factory-amplifier integration must match the original connectors.

Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 05 360 camera option. Standard QLED1280x720; 2K screens optional.

Fascia, accessories and installation

Match the original dashboard, A/C layout, driving side and plugs before ordering. Wiring drawings are connection illustrations. Factory Bose/amplifier, cameras and retained vehicle functions may require a compatible interface. The main power harness must match the original Nissan connectors.

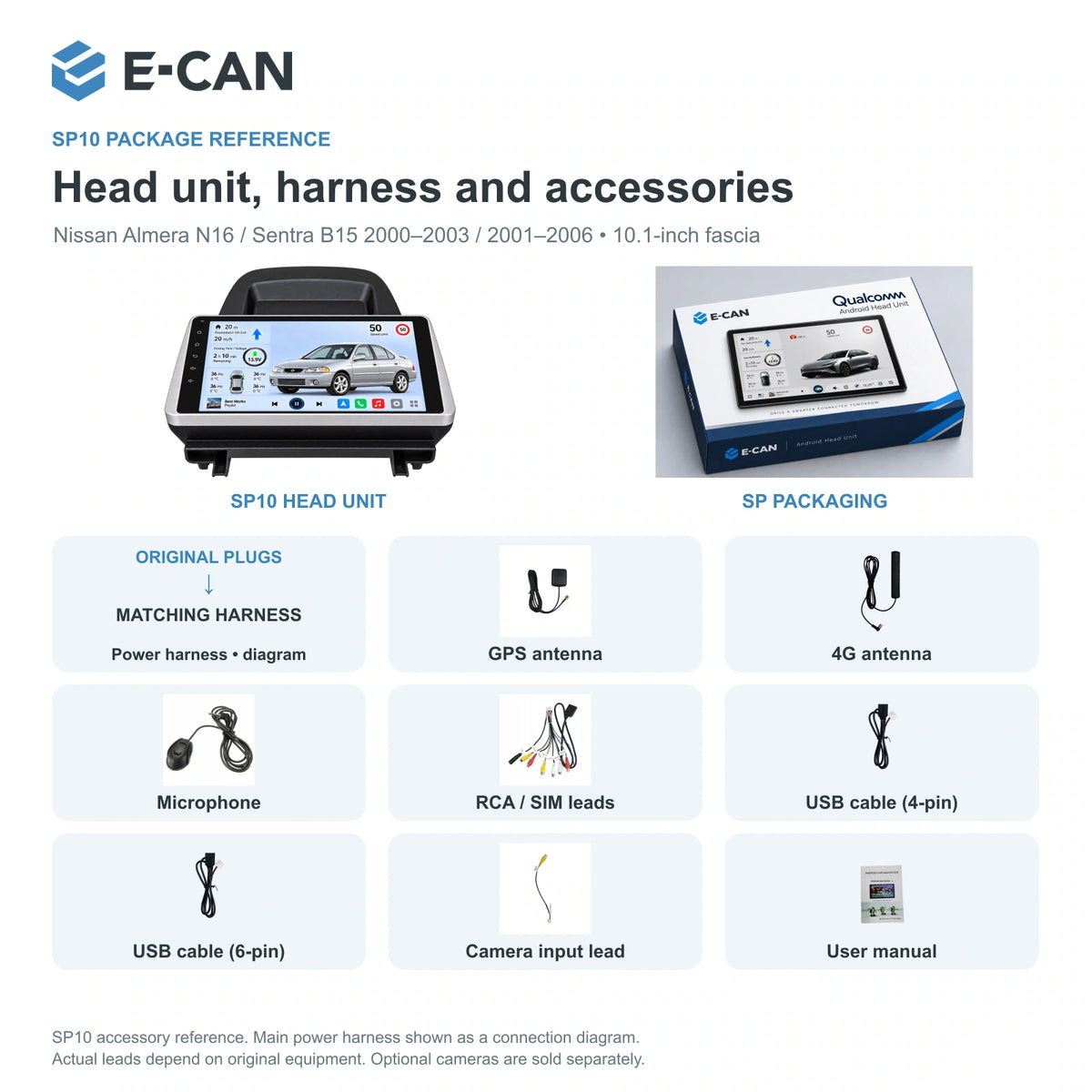

LHD · 10.1-inch fascia — package and wiring
Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 10 sp package and wiring. Standard QLED1280x720; 2K screens optional.
Nissan Almera N16 / Sentra B15 2000–2003 / 2001–2006, 10.1-inch LHD fascia: 09 fit and installation. Standard QLED1280x720; 2K screens optional.
