E-CAN 9-inch Android Car Stereo for Mitsubishi Lancer CS 2003–2006

E-CAN 9-inch Android Car Stereo for Mitsubishi Lancer CS 2003–2006

$317.99 USD
Vehicle versionLHD / RHD shared fascia
Configuration

Complete your setup

Choose optional extras. Selected items are added with your head unit.

Screen upgrades

QLED 1280 × 720 is included as standard. Choose a 2K upgrade only if required.

2K laminated black screen Optional fully laminated 2K display upgrade. +$55.00 USD
2K blue screen Optional blue 2K display upgrade. +$85.00 USD
Goes well with
USB dash camera USB dash camera accessory. +$40.00 USD
USB DAB+ receiver USB digital radio receiver with windscreen antenna. +$65.00 USD

CANbus harness: for 2013-onward mid/high-trim or special vehicles.

Selected accessories$0.00 USD

Accessory prices include shipping. Installation is not included.

E-CAN 9-inch Android Car Stereo for Mitsubishi Lancer CS 2003–2006

Vehicle-specific Android 14 head unit with wireless CarPlay, Android Auto and compatible phone mirroring. Choose your vehicle version and hardware configuration.

Check your dashboard before ordering

Two-piece kit for the illustrated Lancer CS / CH manual-climate dashboard. Relocate the three original climate controls to the lower panel; retain the original upper vents, clock and hazard switch. Confirm cable travel and mounting points. Not the later CJ/CY dashboard.

The supplied fascia is confirmed for both left-hand drive and right-hand drive. Match the illustrated dashboard, climate controls and original equipment. Compare the original plugs, factory amplifier and camera system; a matching adapter may be required. Send us a dashboard photo for fitment support.

Standard screen: QLED 1280 × 720. Optional 2K 2000 × 1200 black and blue screen upgrades are separate, mutually exclusive choices.

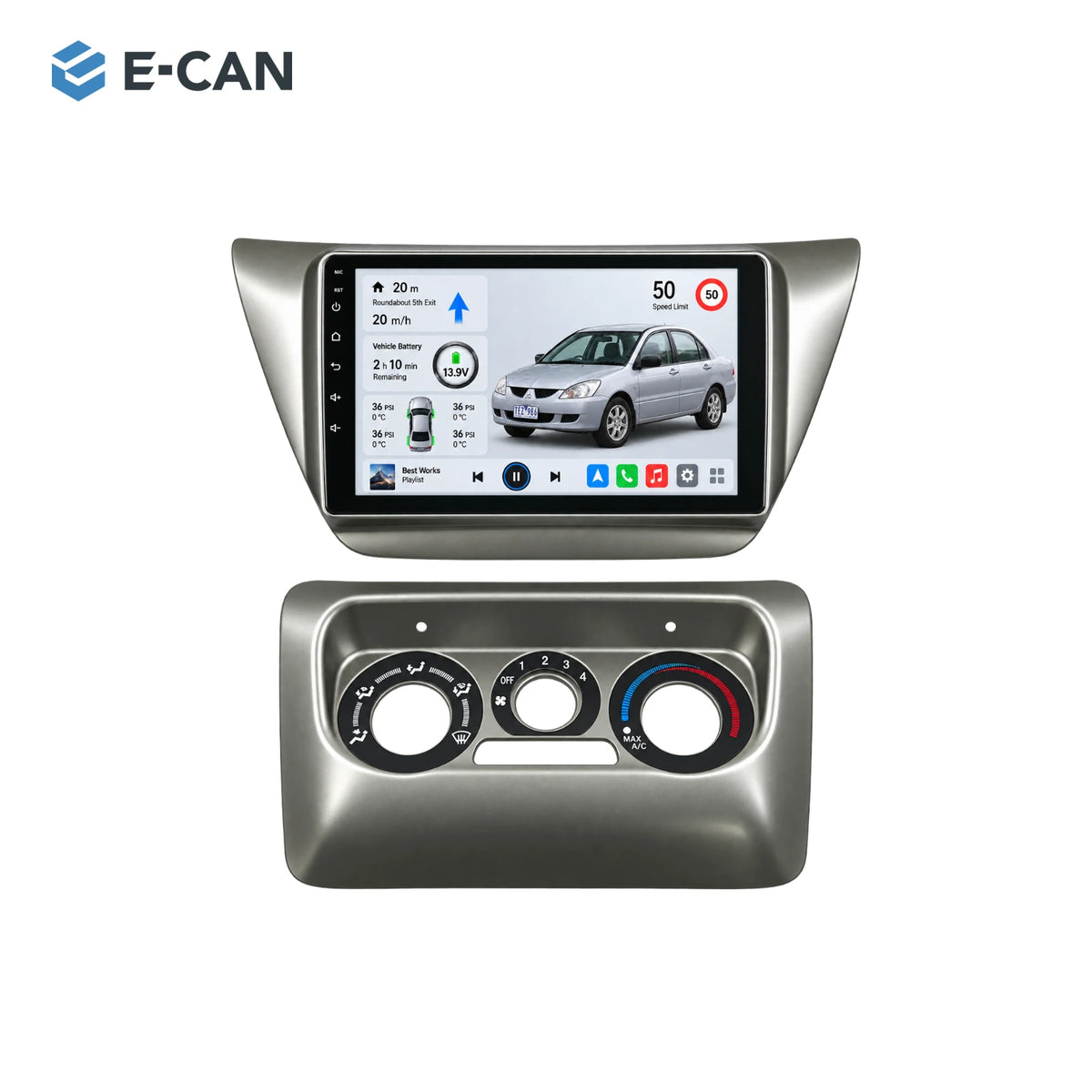

Mitsubishi Lancer CS 2003–2006 9-inch — 01 product white; interface illustration

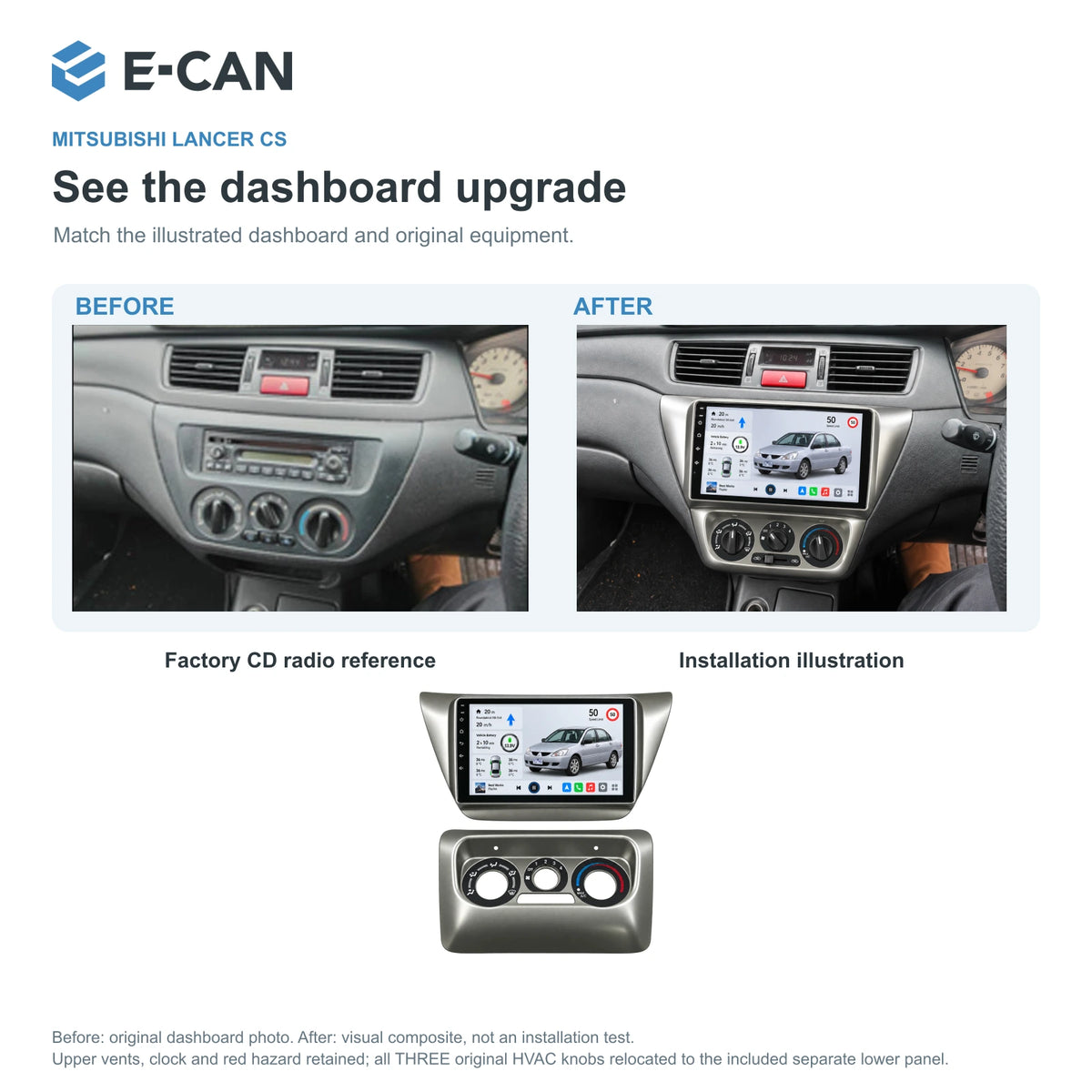

Mitsubishi Lancer CS 2003–2006 9-inch — 03 installation comparison; installation illustration, not a physical test
Dashboard reference and installation illustration.

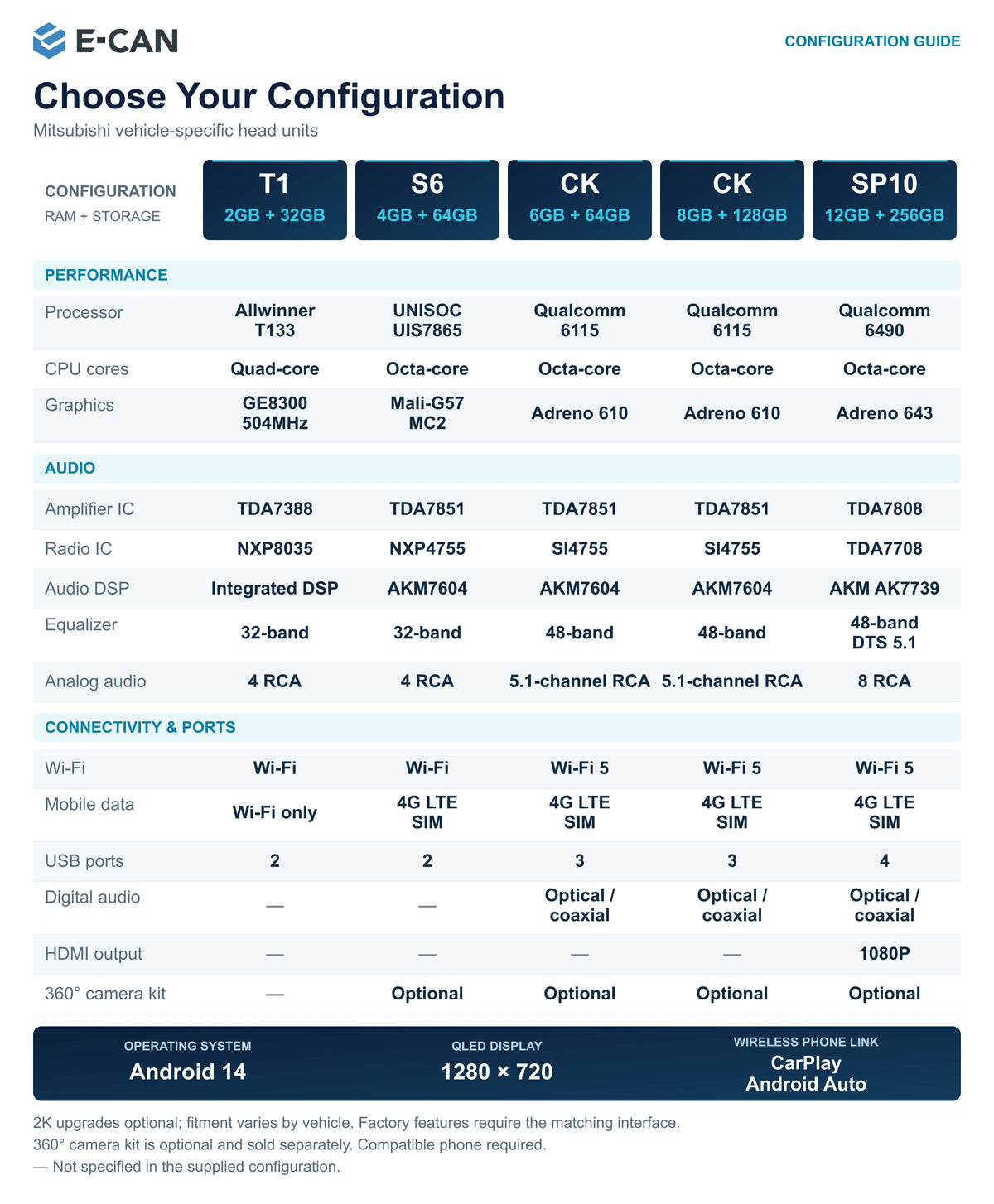

Choose your configuration

Configuration Processor CPU / GPU Amplifier IC Op-amp / DAC DSP / radio Connectivity / audio

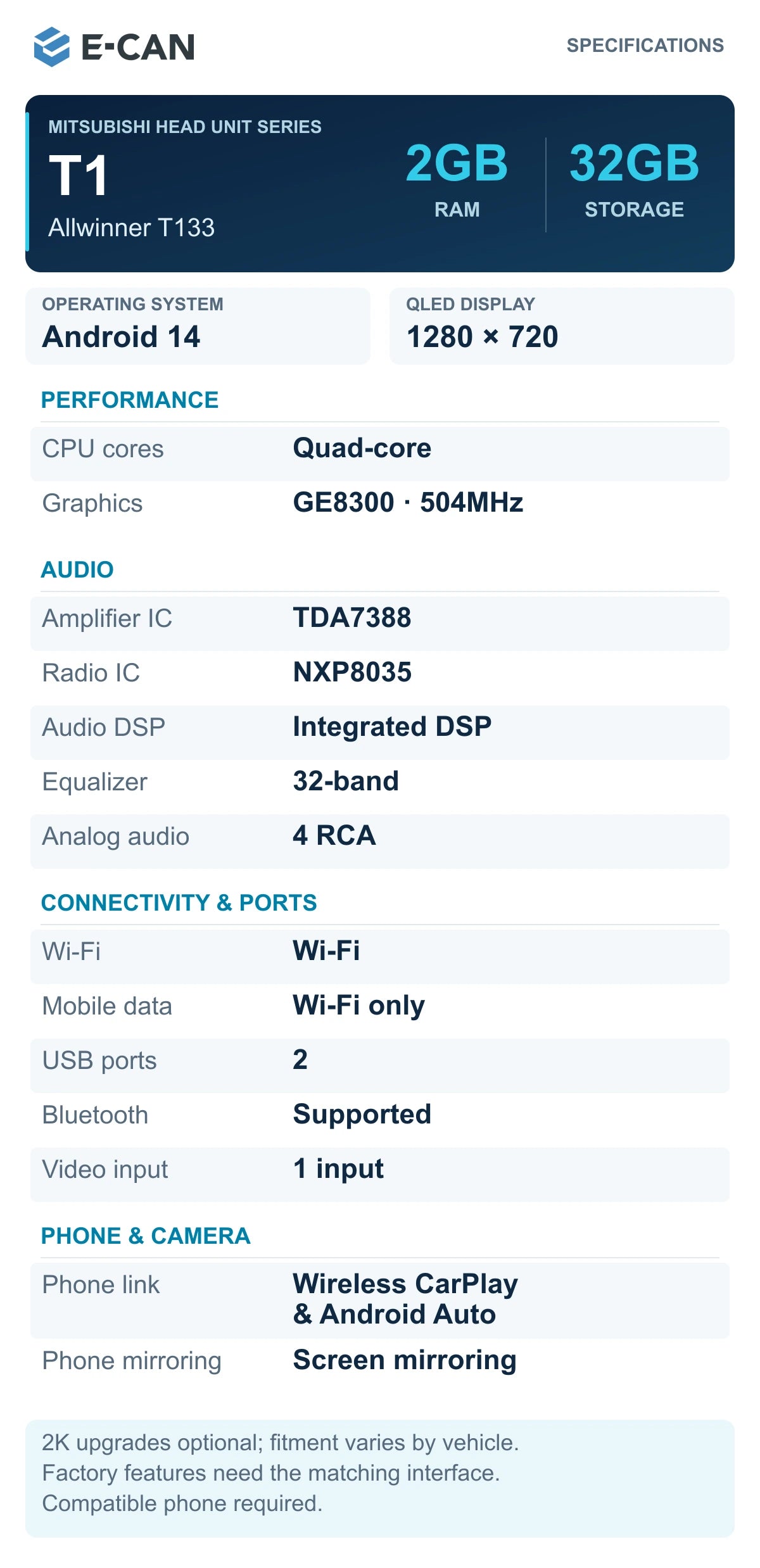

T1 · 2GB + 32GB Allwinner T133 Quad-core / GE8300 504MHz TDA7388 Not specified Integrated DSP / NXP8035 Wi-Fi / 2 USB / 32-band EQ

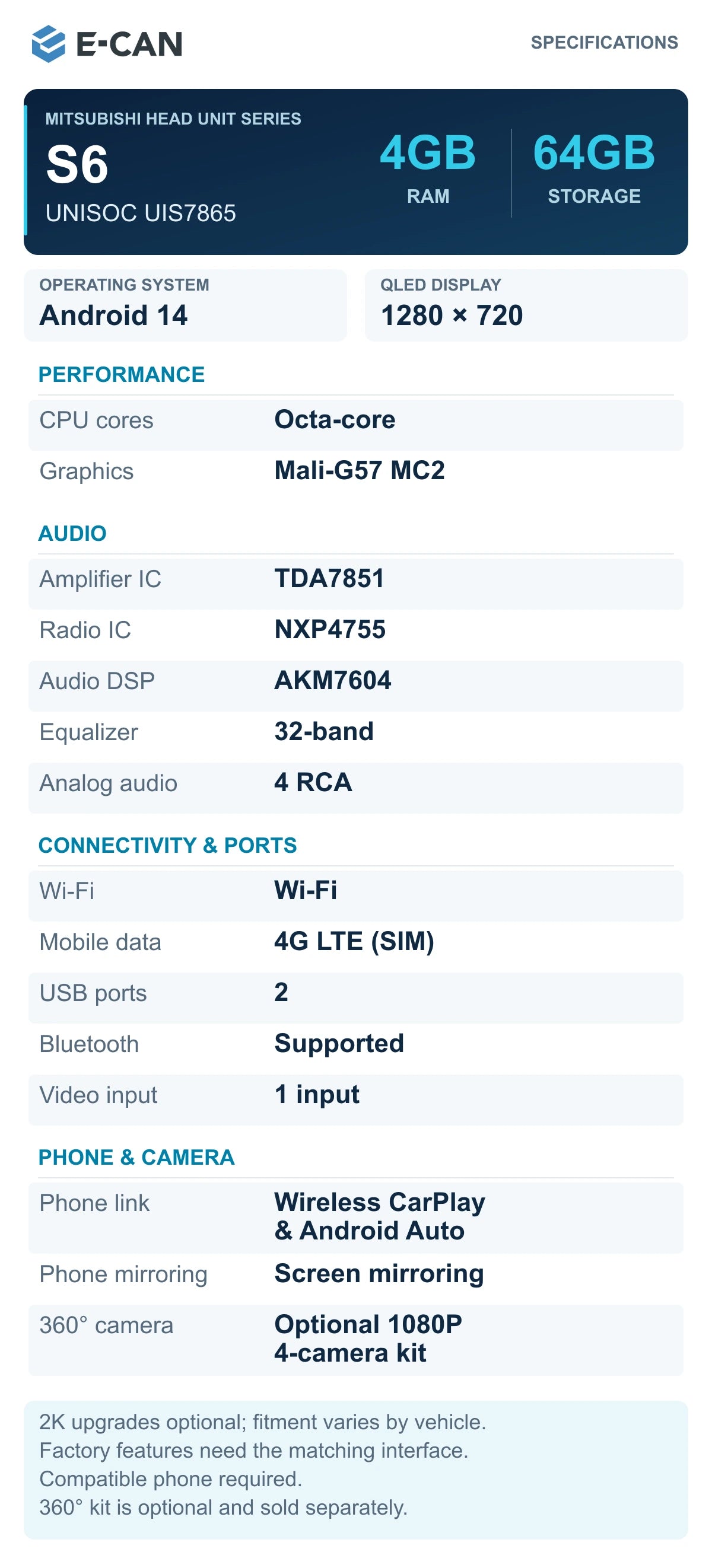

S6 · 4GB + 64GB UNISOC UIS7865 Octa-core / Mali-G57 MC2 TDA7851 Integrated; exact IC not specified AKM7604 / NXP4755 Wi-Fi + 4G SIM / 2 USB / 32-band EQ
CK · 6GB + 64GB Qualcomm 6115 Octa-core / Adreno 610 TDA7851 JRC4558 AKM7604 / SI4755 Wi-Fi 5 + 4G LTE / 3 USB / 48-band EQ

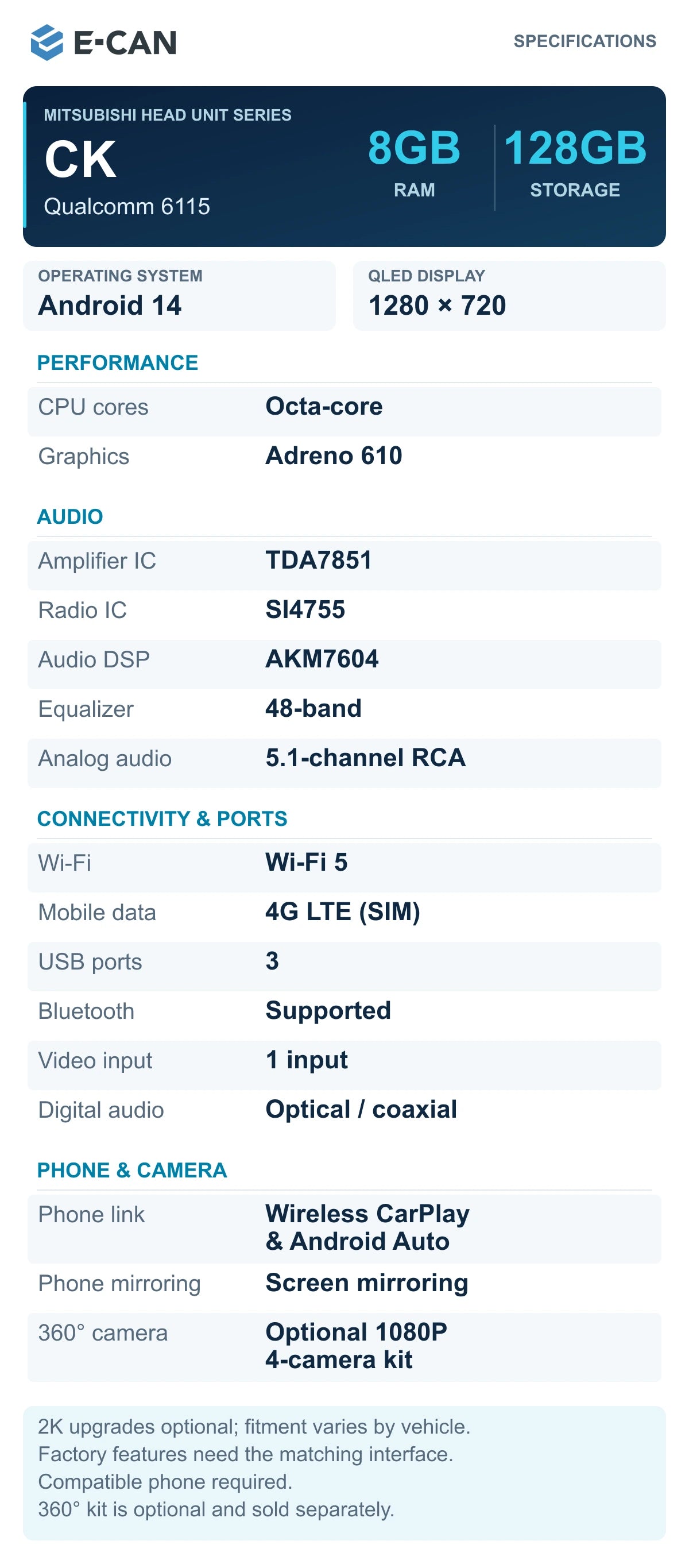

CK · 8GB + 128GB Qualcomm 6115 Octa-core / Adreno 610 TDA7851 JRC4558 AKM7604 / SI4755 Wi-Fi 5 + 4G LTE / 3 USB / 48-band EQ

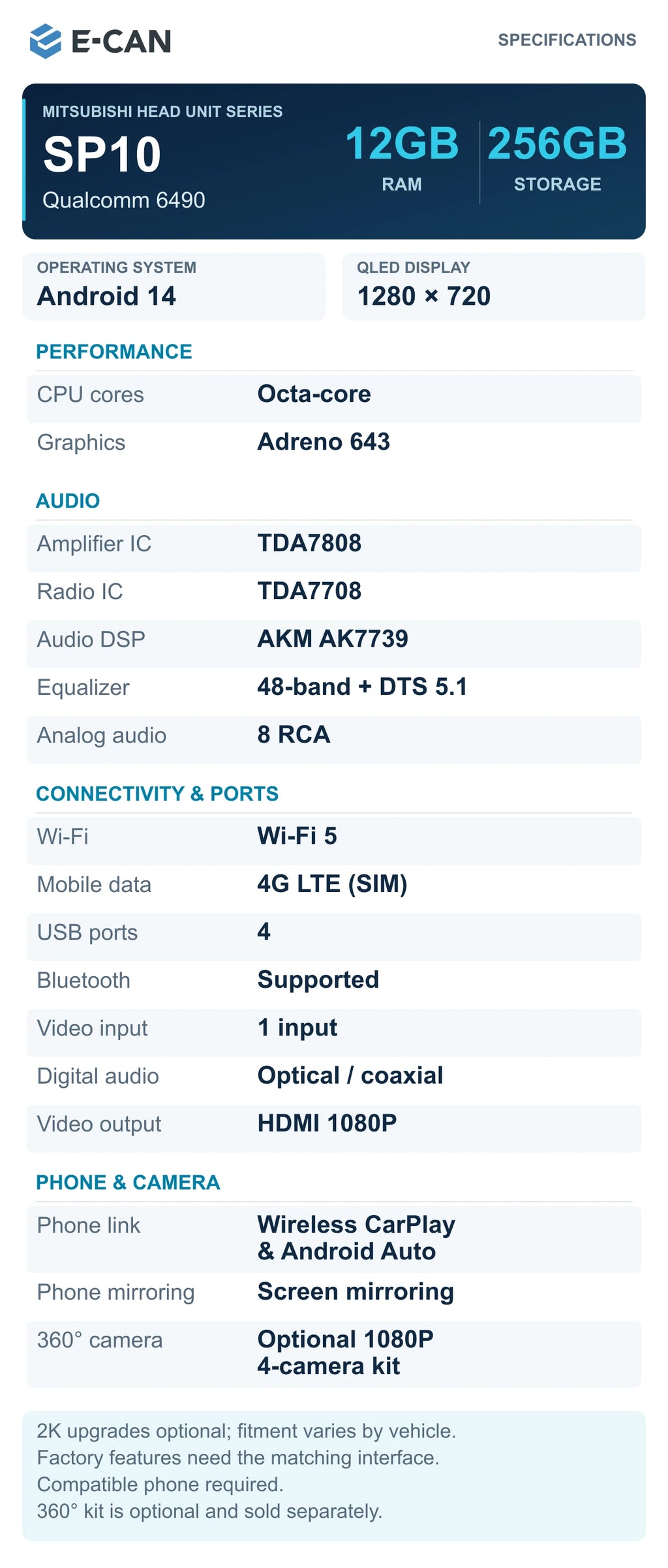

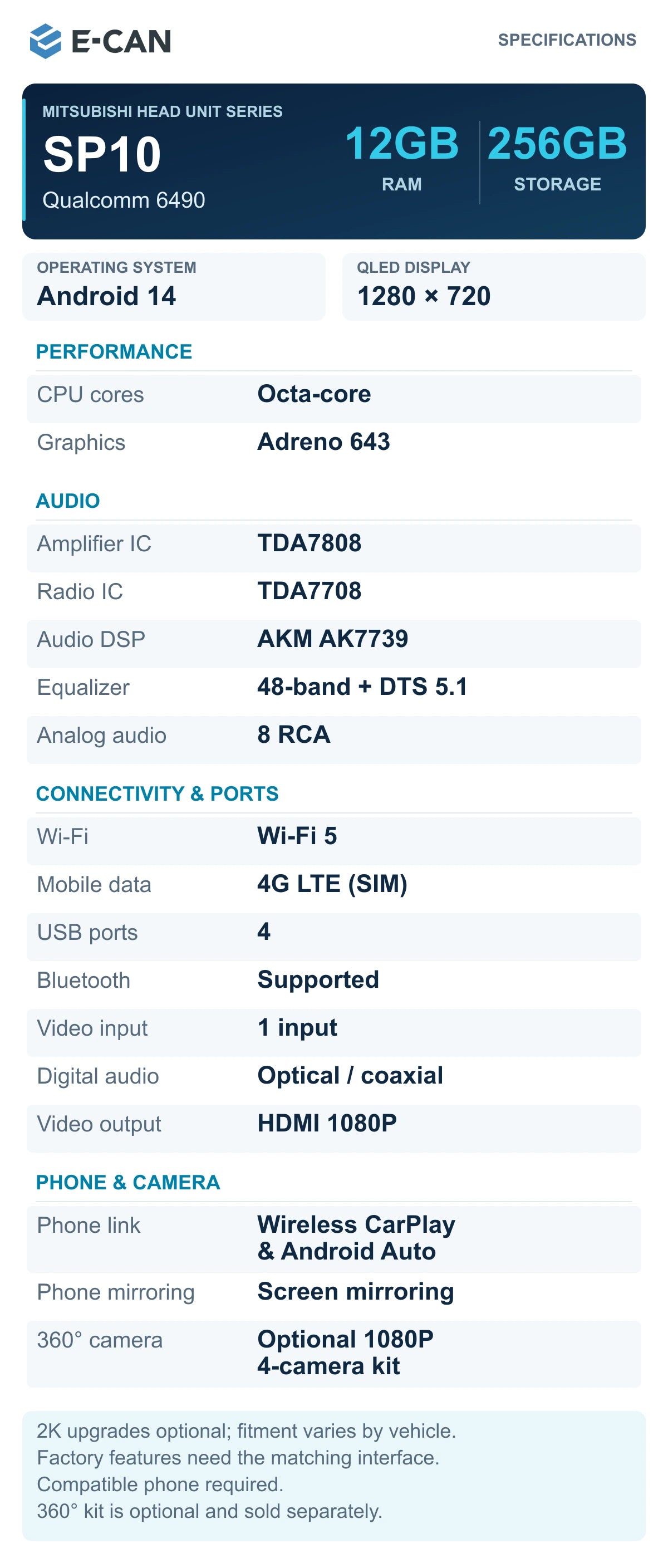

SP10 · 12GB + 256GB Qualcomm QCM6490 Octa-core / Adreno 643 TDA7808 JRC4558 + separate MS4344 DAC AKM7739 / TDA7708 Wi-Fi 5 + 4G LTE / 4 USB / 48-band EQ + DTS 5.1

T1 does not support the optional 360° camera kit. S6, CK and SP10 support a compatible optional four-camera kit. Rear camera, DAB+, TPMS, dash camera and other accessories are sold separately.

CANbus is selected only for a compatible vehicle, eligible model year and confirmed medium/high original equipment level. A memory upgrade alone does not require CANbus.

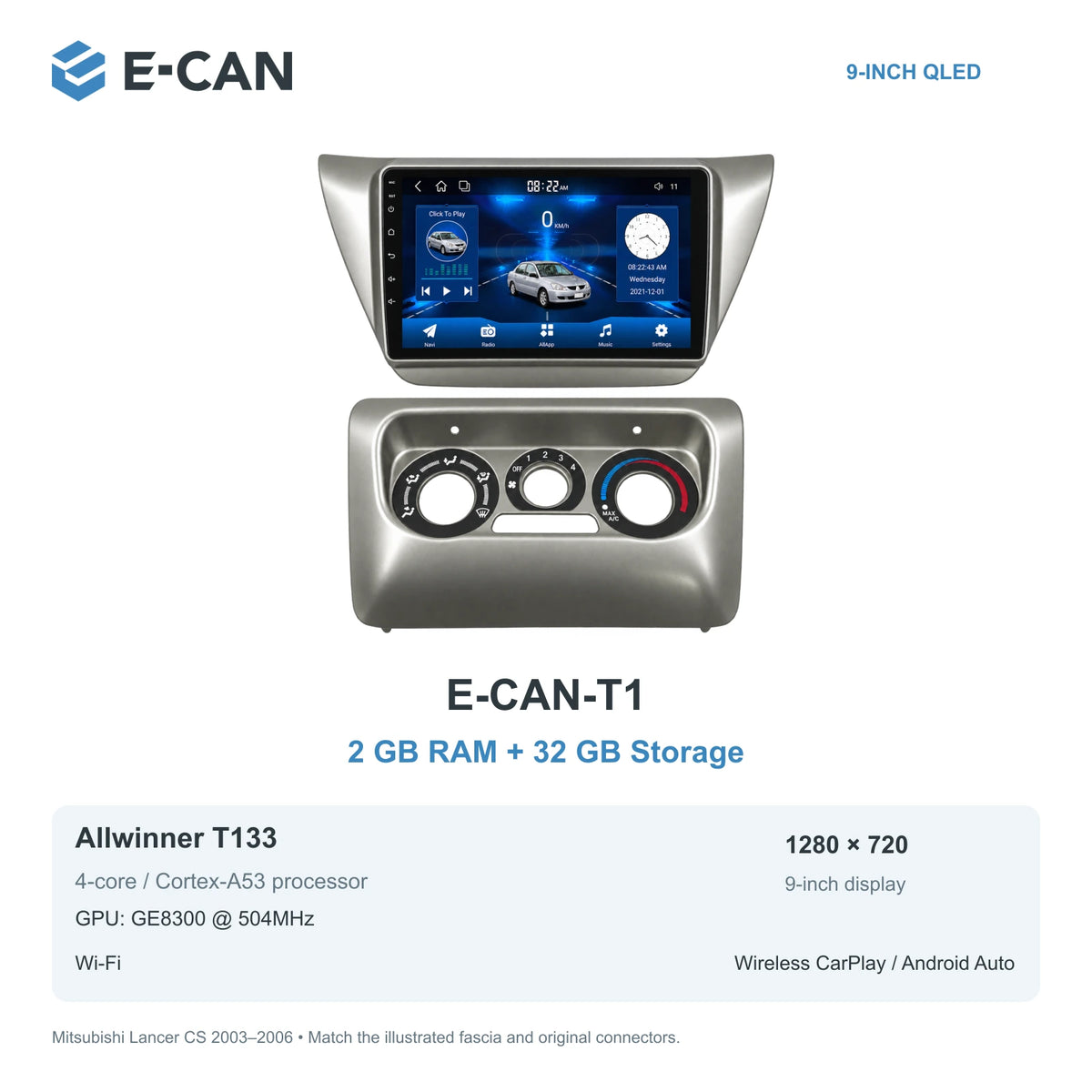

Mitsubishi Lancer CS 2003–2006 9-inch — 01 t1 2 32gb; interface illustration
Mitsubishi Lancer CS 2003–2006 9-inch — 02 s6 4 64gb; interface illustration
Mitsubishi Lancer CS 2003–2006 9-inch — 03 ck 6 64gb; interface illustration
Mitsubishi Lancer CS 2003–2006 9-inch — 04 ck 8 128gb; interface illustration
Mitsubishi Lancer CS 2003–2006 9-inch — 05 sp10 12 256gb; interface illustration

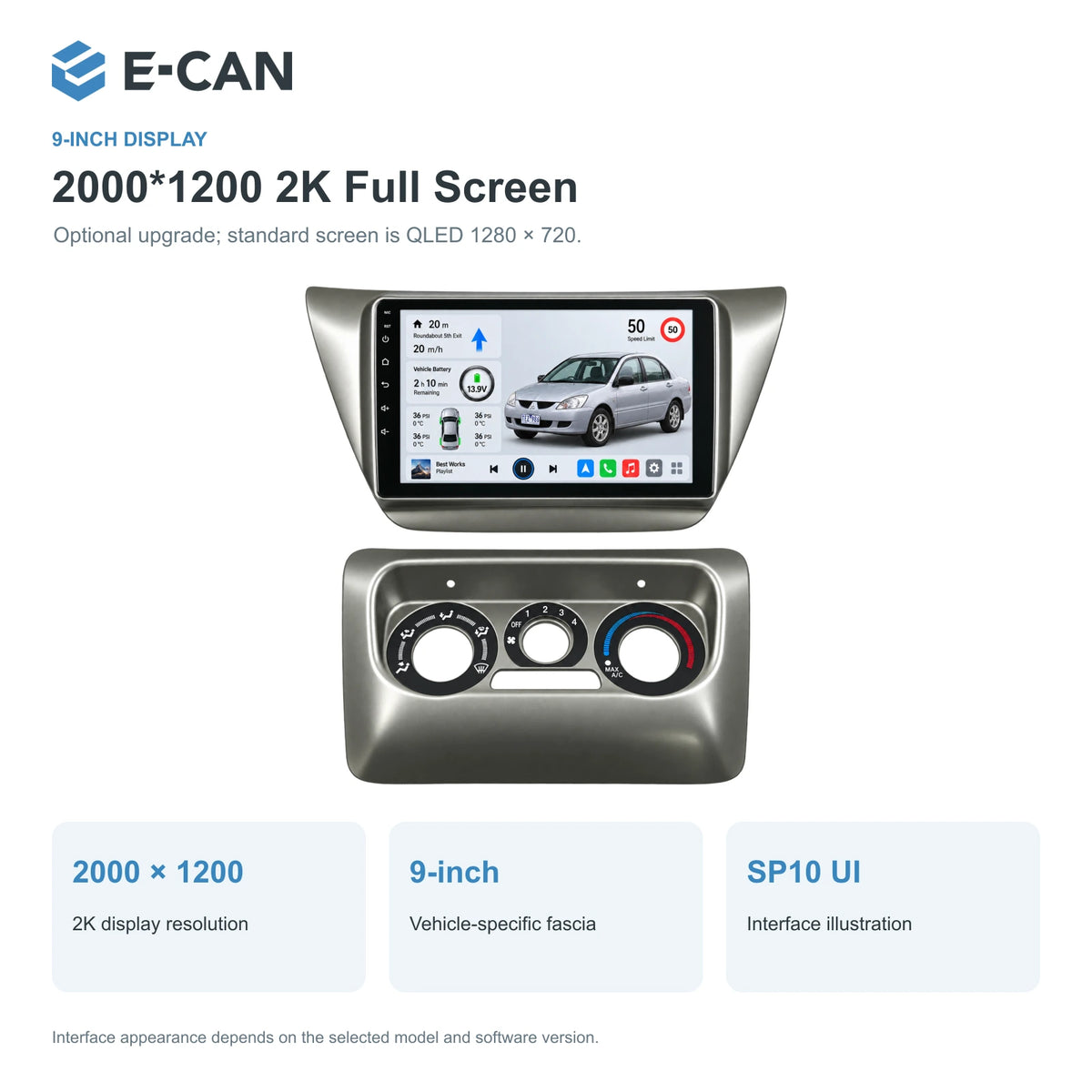

Mitsubishi Lancer CS 2003–2006 9-inch — 02 2k display; optional screen upgrade
Optional screen upgrade; sold separately.

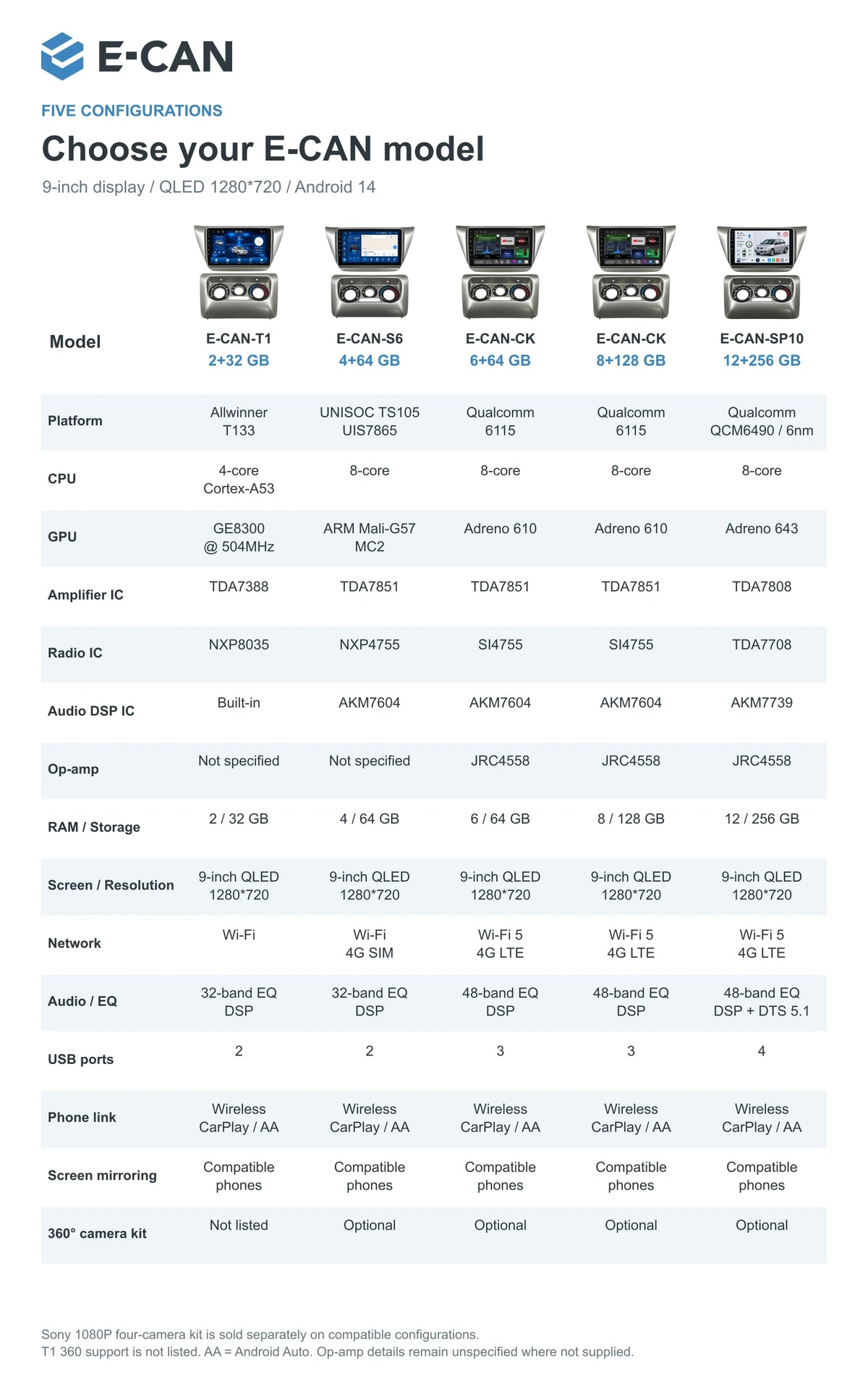

Mitsubishi Lancer CS 2003–2006 9-inch — 04 model comparison; interface illustration

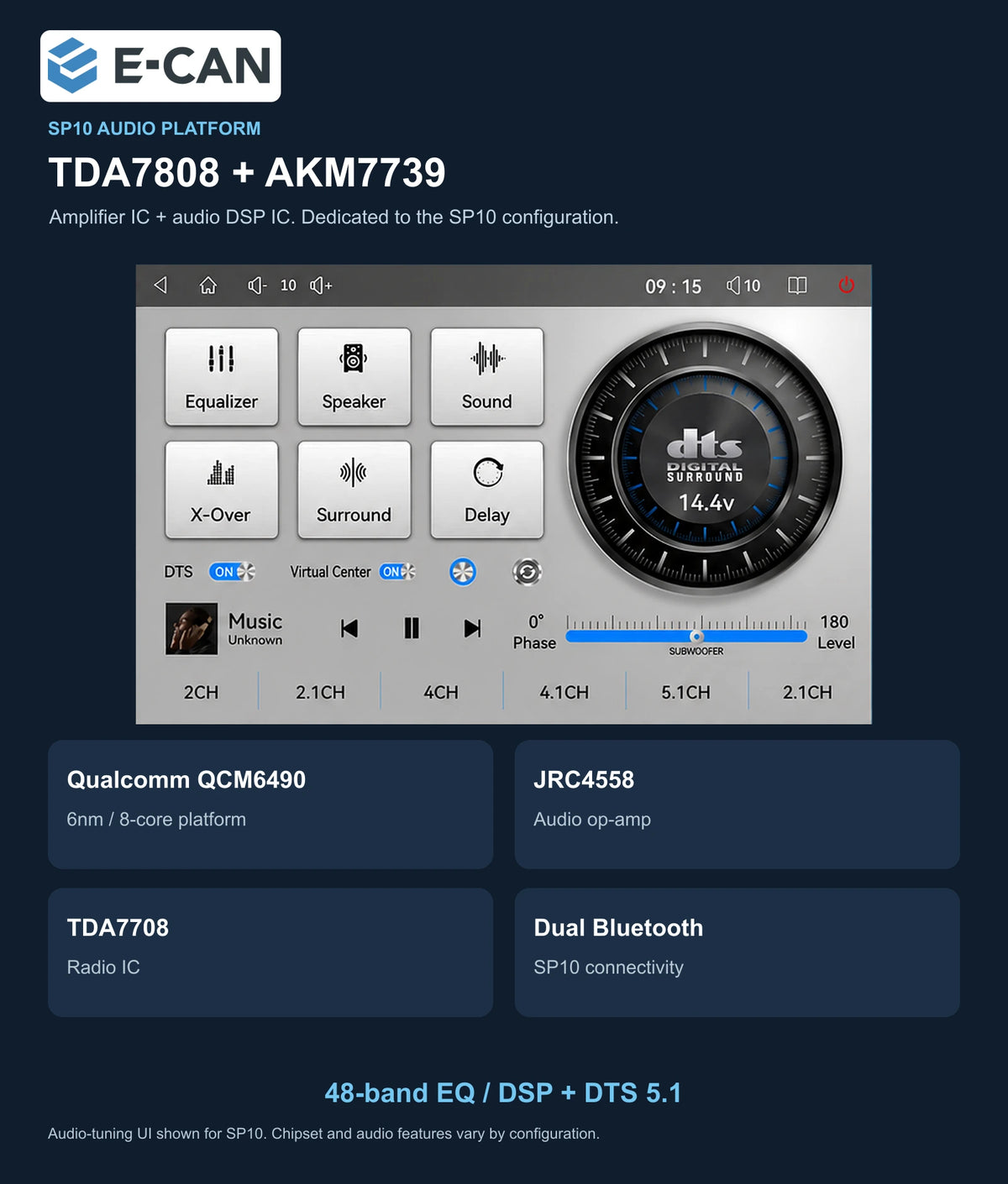

Mitsubishi Lancer CS 2003–2006 9-inch — 06 sp10 platform audio; interface illustration

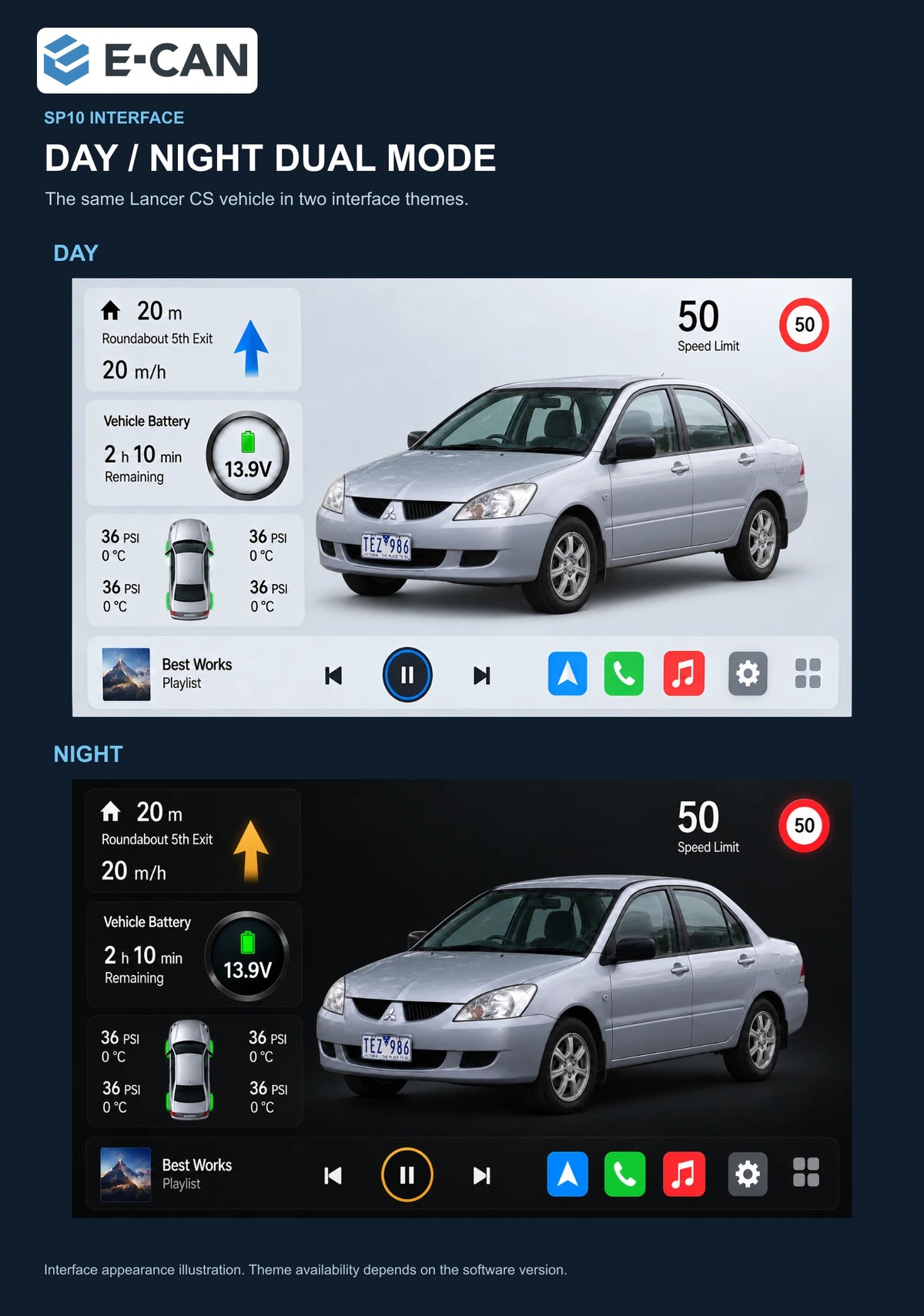

Mitsubishi Lancer CS 2003–2006 9-inch — 06b day night ui; interface illustration

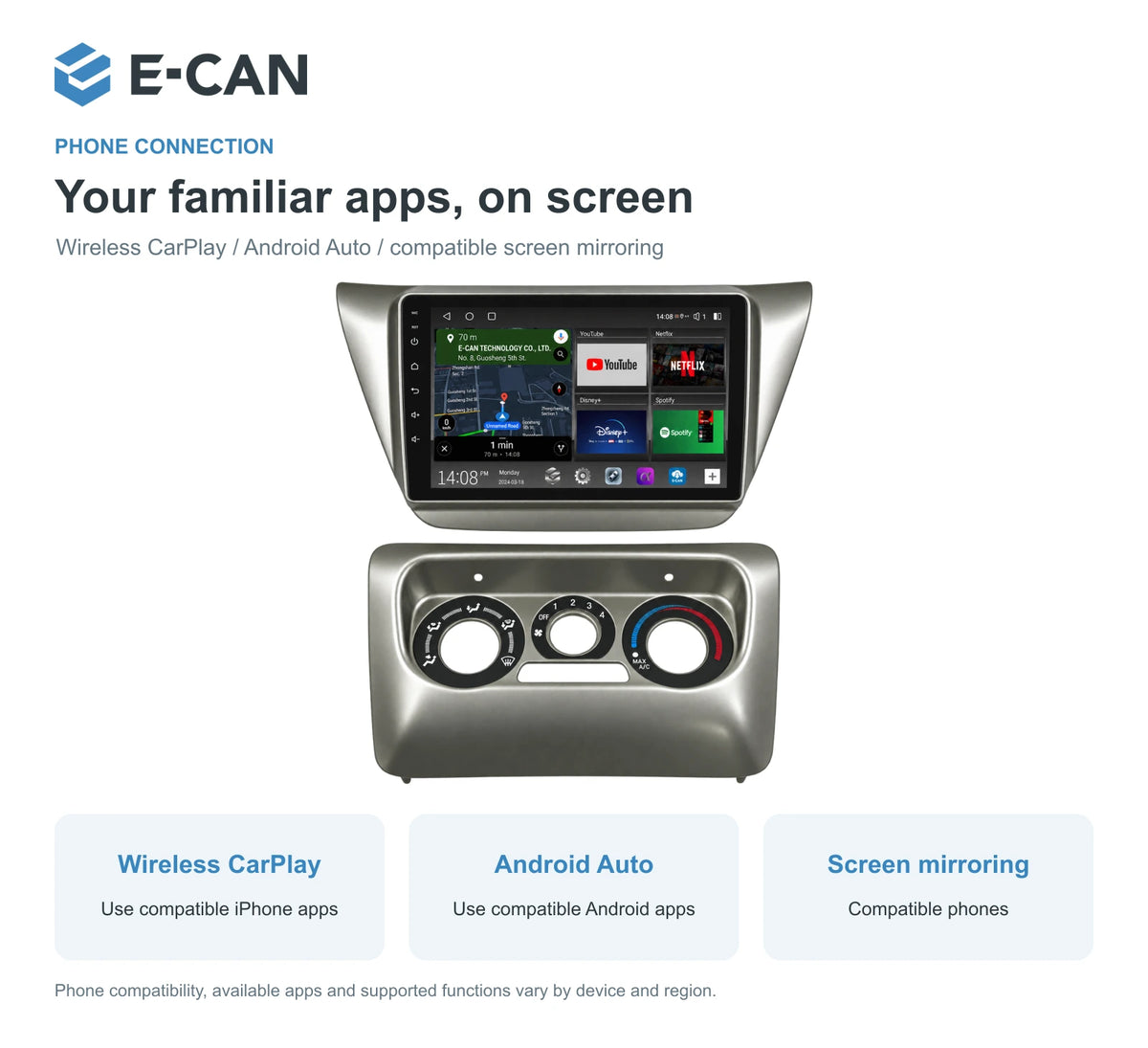

Mitsubishi Lancer CS 2003–2006 9-inch — 07 wireless phone link; interface illustration

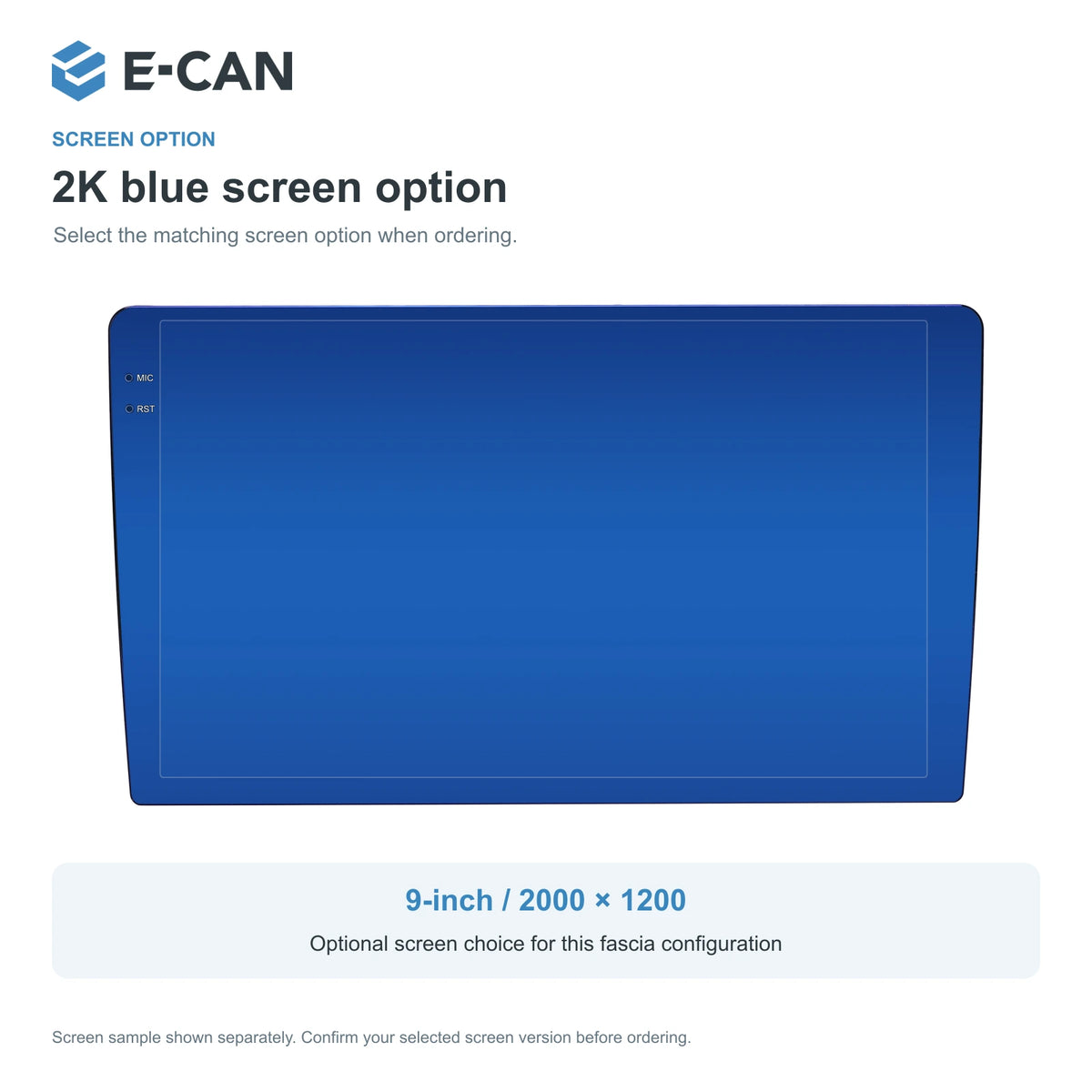

Mitsubishi Lancer CS 2003–2006 9-inch — 08 blue screen option; optional screen upgrade
Optional screen upgrade; sold separately.

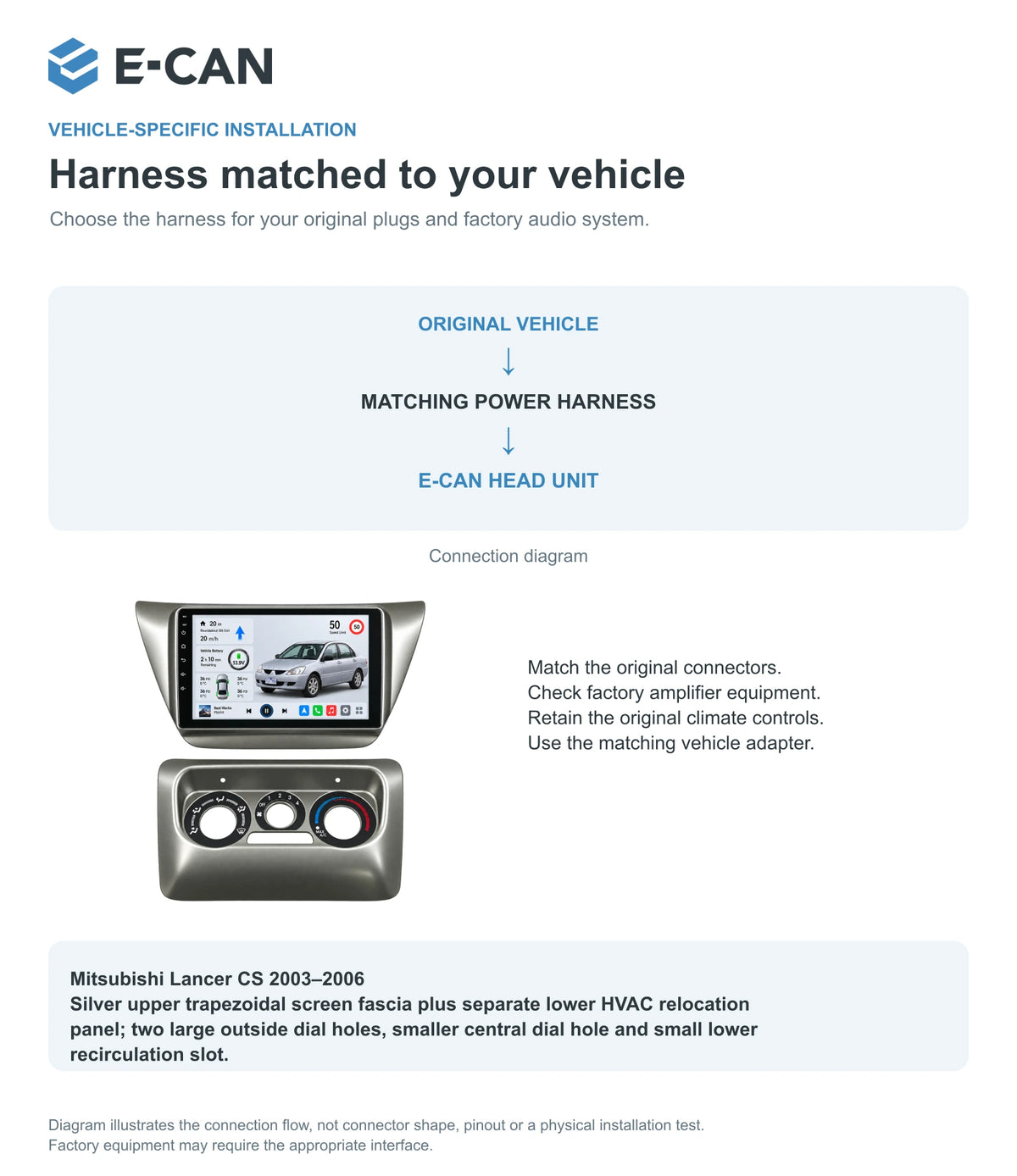

Mitsubishi Lancer CS 2003–2006 9-inch — 09 fit and installation; installation illustration, not a physical test
Dashboard reference and installation illustration.

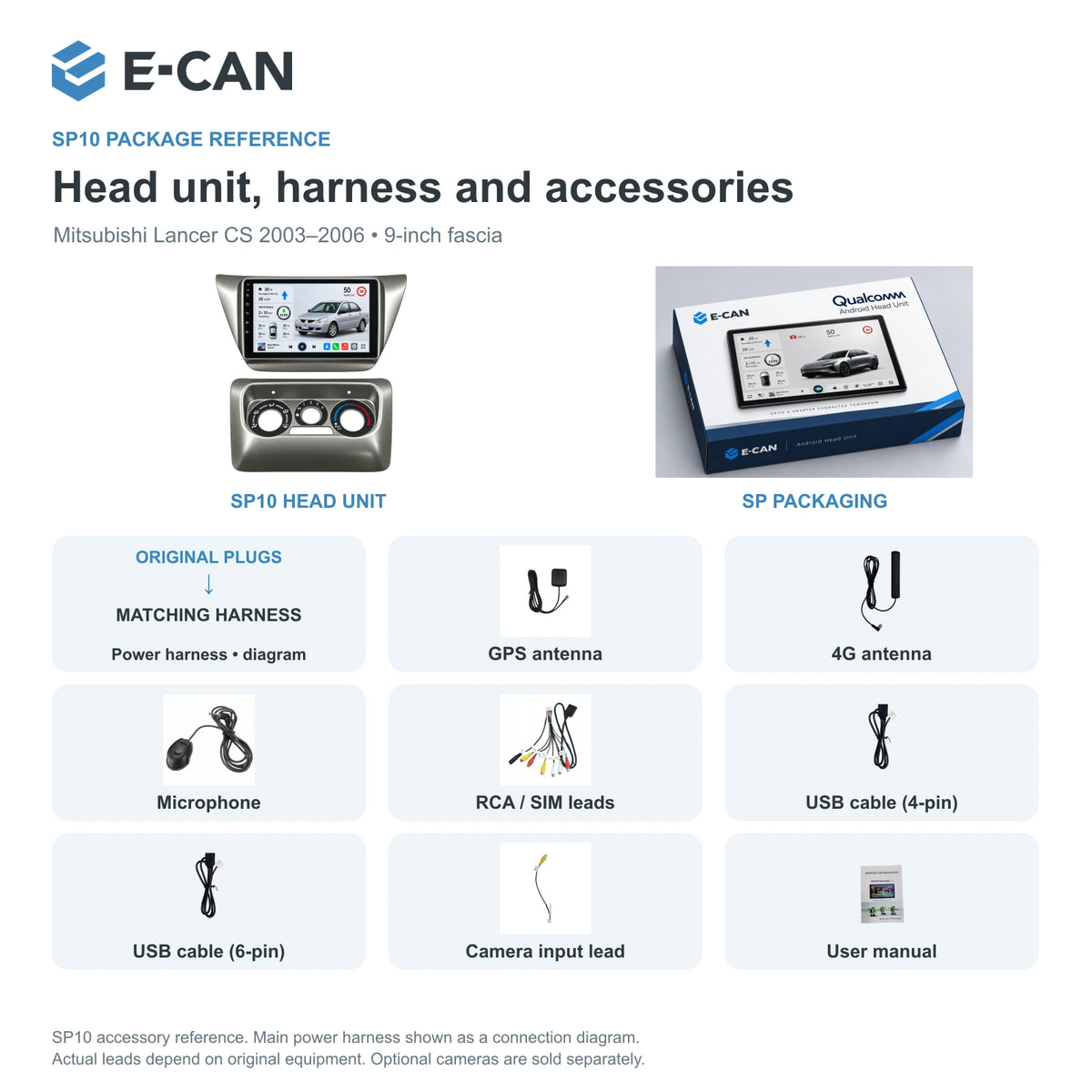

Mitsubishi Lancer CS 2003–2006 9-inch — 10 sp package and wiring; interface illustration
01 E CAN Mitsubishi Configuration Comparison; standard QLED, 2K optional

Product interfaces, installation composites and wiring diagrams are illustrations. They do not establish connector pinouts or physical installation testing. Supplied leads and factory-feature retention depend on the matched vehicle interface. OTA refers to firmware updates, not a promise of an Android version upgrade.
